Item no: 0101267

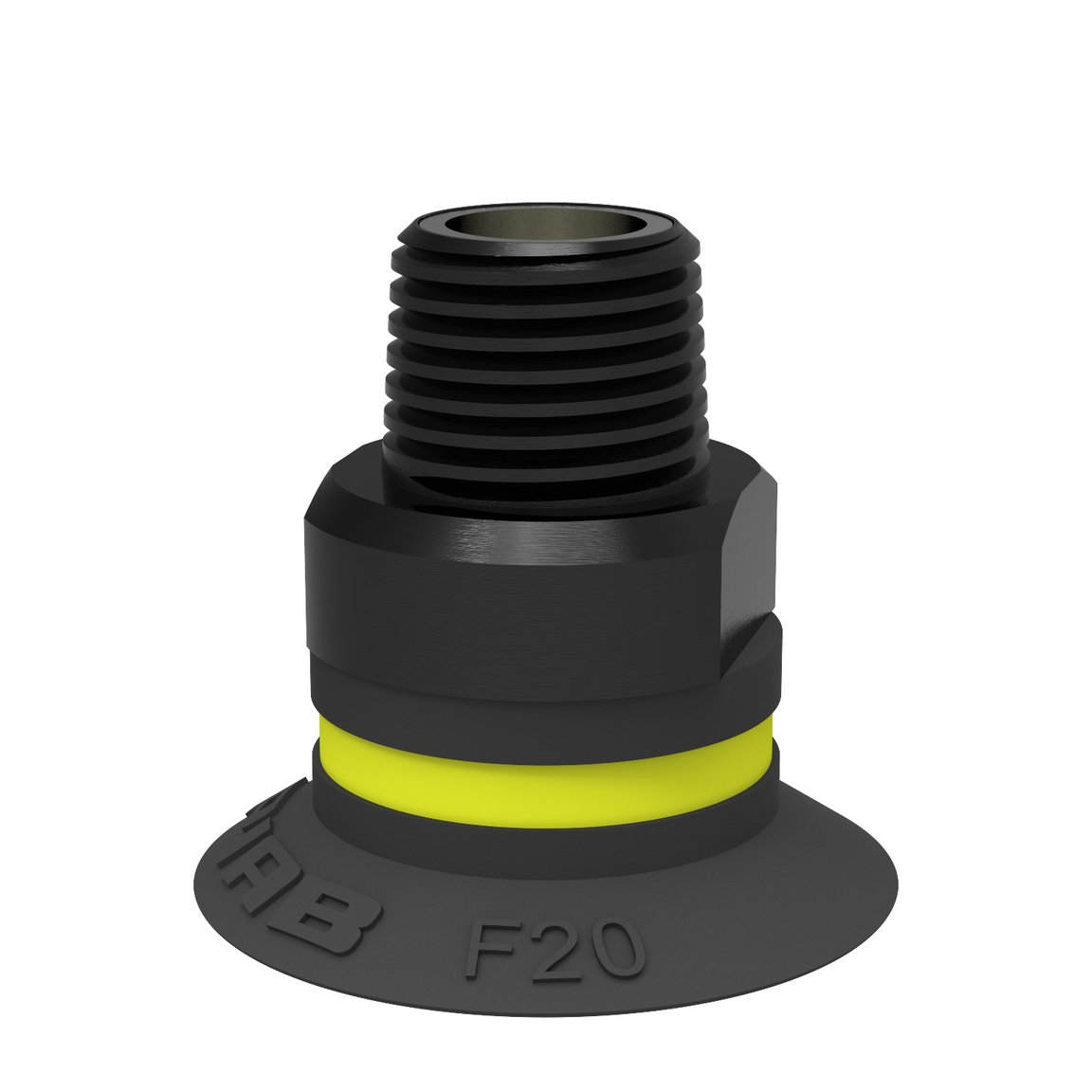

Suction cup F20 Chloroprene, 1/8" NPT male, with dual flow control valve
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.
Read more-
Description
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.
-
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
-
Specifications
General
ApplicationDry sheet metalSuction cup shapeFlatMaterialChloroprene (CR)Leakage flow, max.0.06 Nl/sSuction cup modelFValve restriction0.7 mmWeight1.2 gVolume1 cm³Suction cup modelF20Movement, vertical max.1.2 mmCurve radius, min.18 mmFitting
Fitting optionDual flow control valveFitting size1/8"Fitting styleMaleFitting typeNPT-threadDimension
Height20 mmOuter diameter22 mmPerformance - lifting forces
F20
20 -kPa60 -kPa90 -kPa5 N8 N8.5 NMaterial
NameCRColourBlackTemperature-40 - 110 °CHardness50 °Shore ACRAlcohol++Concentrated acids-Ethanoln/aHydrolysis++Methanoln/aOil+Oxidation++Petrol+Wear resistance+++Weather and ozone++Dimensional drawings
