4.5 N
8.6 N
19 N
Select variant
-
0206372Suction cup P-D36 Silicone detectable, FCM
-
0207029Suction cup P-D36 Silicone G1/4" male SS, detectable, FCM
-
0207030Suction cup P-D36 Silicone G3/8" male SS, detectable, FCM
-
0207031Suction cup P-D36 Silicone 1/4" NPT male SS, detectable, FCM
-

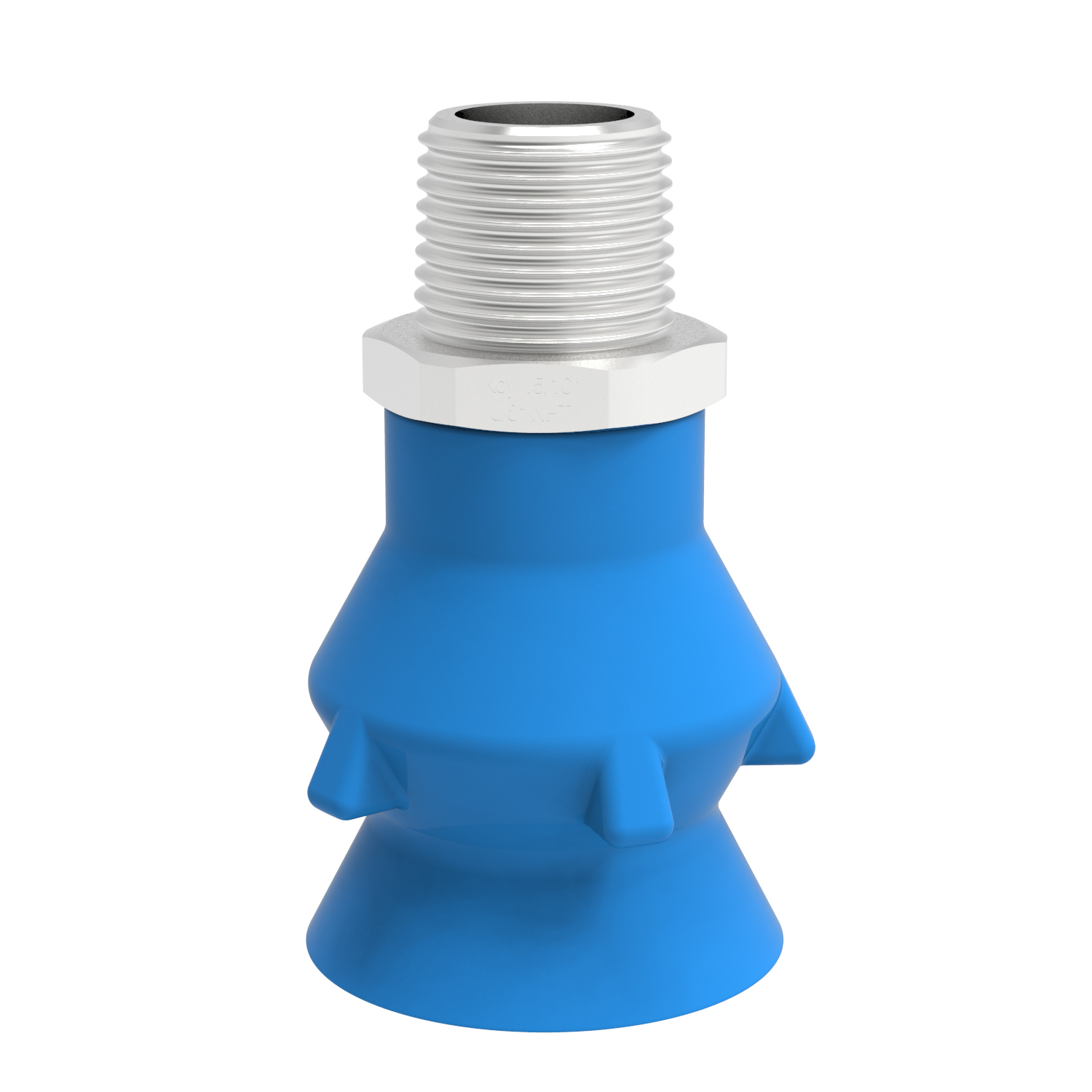

0207032 Suction cup P-D36 Silicone 3/8" NPT male SS, detectable, FCM
-
0207033Suction cup P-D36 Silicone G1/4" male composite, detectable, FCM
-
0207034Suction cup P-D36 Silicone G3/8" male composite, detectable, FCM
-
0207035Suction cup P-D36 Silicone 1/4" NPT male composite, detectable, FCM
-
0207036Suction cup P-D36 Silicone 3/8" NPT male composite, detectable, FCM
-
Description
-
Features
- The silicone material complies with FDA 21 CFR 177.2600 and EU 1935/2004.
- Long lasting high-end silicone material
- A low percentage metal additive (Fe) is mixed with the rubber material to make it detectable.
- Suitable for pralines, such as chocolates
- Available with male threaded food grade, detectable plastic fittings or acid proof stainless steel fittings.
- Easy to clean with hygienic design. No dust/dirt pockets.
-
Specifications
General
ApplicationFood contact materials (FDA & EU), detectableSuction cup shapeDeepMaterialSILDETFCM, ASTM316LSuction cup modelP-DWeight40.6 gVolume15 cm³Suction cup modelP-D36 Dry metal sheetCurve radius, min.37 mmFitting
Fitting optionNoneFitting size3/8"Fitting styleMaleFitting typeNPT-threadDimension
Height46.3 mmOuter diameter35.8 mmPerformance - lifting forces
P-D36 Dry metal sheet
10 -kPa20 -kPa40 -kPa12.2 N16.8 N28.3 NMaterial
NameSILDETFCMColourBlueTemperature-40 - 200 °CHardness40 °Shore ASILDETFCMAlcohol++Concentrated acids-Ethanoln/aHydrolysis+Methanoln/aOil-Oxidation+++Petrol-Wear resistance++Weather and ozone+++ -
Industries
Logistics
- Kitting
Packaging
- Direct food contact
-
