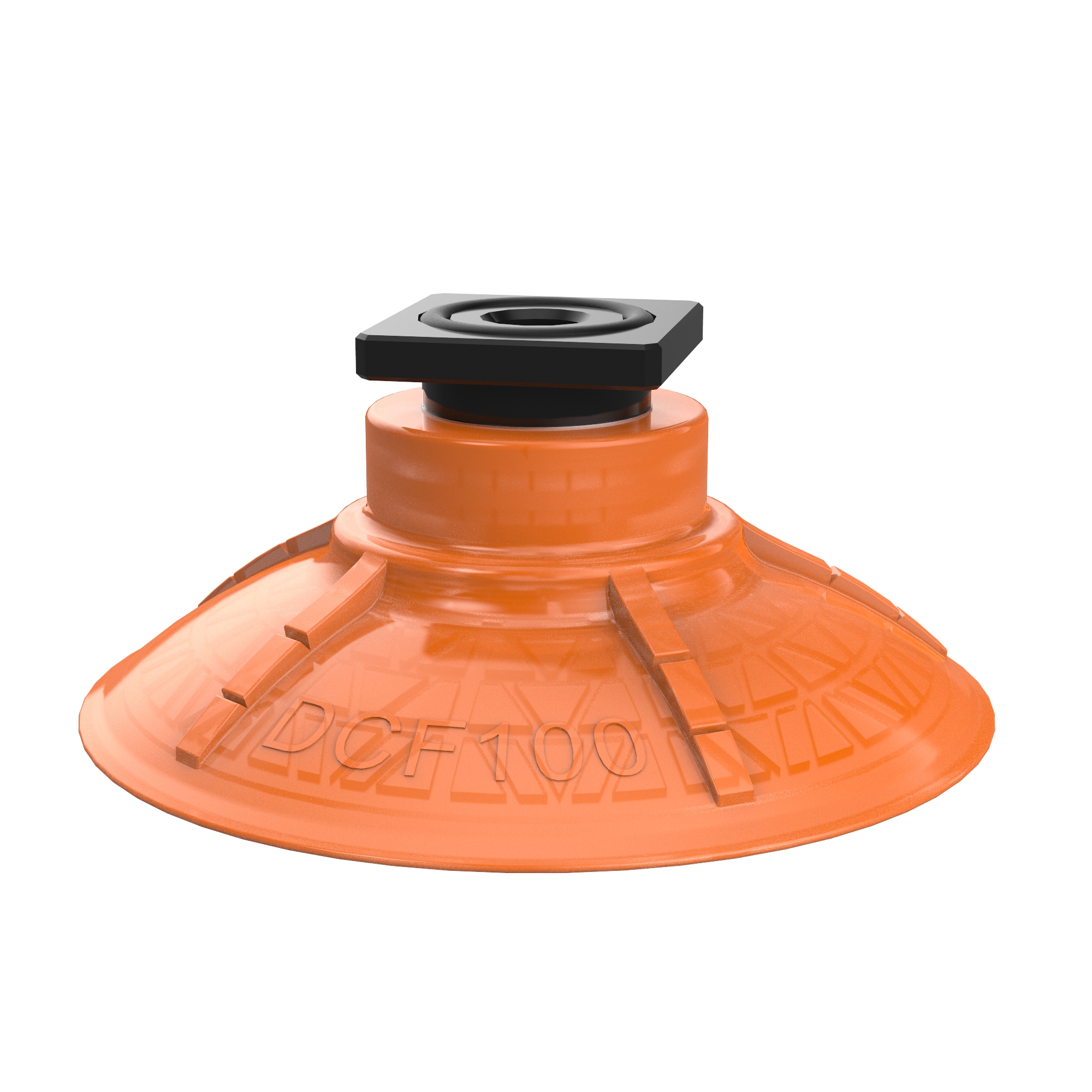

Suction cup DCF100P Polyurethane 60, T-slot with mesh filter
Login or create account to access all our content and features!
Select variant
0210172
0210620
0210621
0210622
0210623
0210624
0210625
0210626
0210627
Features
- Special designed friction cups for domed or flat oily surfaces, such as sheets in metal forming processes.
- Long lasting material, normal wear on friction cup will not affect the long term shear force performance.
- Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
- Refined internal friction pattern provides additional grip performance, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
- Thin design that easily will follow convex or concave surfaces. The thin and pliable design in combination with a special inner friction pattern will maximize grip performance.
- DURAFLEX® is a material that features the elasticity of rubber and wear resistance of polyurethane. The material has a fantastic elastic memory, even after hundreds of thousand cycles.
Automotive
- Bodysides & framing
- De-stacking
- Door on / off ergo tools
- Gas tank assembly and installation
- Glass assembly & installation
General
Material
Polyurethane (PU)
Characteristics
Oily sheet metal
Suction cup model
DCF
Volume
58.9695 cm³
Weight, min.
80.8 g
Fitting
Material
Al (anodized)
Fitting option
Filter mesh
Fitting style
T-slot
Dimension
Height
38.3 mm
Height 2 (Actuated)
26.3 mm
Outer diameter, actuated
105 mm
Outer diameter, min.
100.4 mm
Performance - lifting forces
DCF100 Oily metal sheet
60 -kPa
238 N
188 N
90 -kPa
324 N
260 N
Performance - lifting forces
DCF100 Dry metal sheet
60 -kPa
249 N
269 N
90 -kPa
335 N
413 N
Material
Name
Polyurethane (PU60)
Colour
Orange
Temperature
10 - 50 °C
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
-
Oil
+++
Oxidation
-
Petrol
+
Wear resistance
+++
+++
Dimensional drawings
