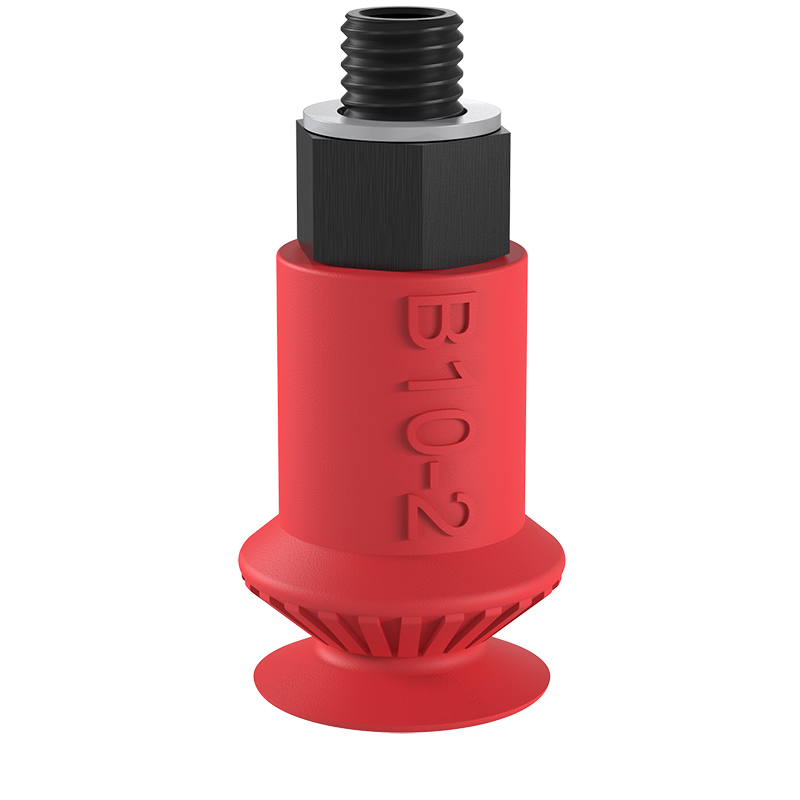

Suction cup B10-2 Silicone 1.5 Bellows, M5 male

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR and nitrile-PVC.

Check availability

Request quote

Description

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR and nitrile-PVC.
Features
- Suitable for level adjustment.
- Lifting movement to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface.
Specifications
General

Item number, alternative

E12021022

Application

PlasticInjectionMoldedParts, DrySheetMetal

Material

Silicone (SIL)

Weight

1 - 3 g

Suction cup model

B10-2

Movement, vertical max.

4.5 mm

Curve radius, min.

4 mm

Dimensions DWG

Diameter (A)

10 mm

Thread (Note)

B

Thread

M5 in

Performance - lifting forces

B10-2

20 -kPa

60 -kPa

90 -kPa

1.5 N

3.4 N

4.9 N

1.77 N

2.41 N

2.82 N

Material

Name

SIL

Colour

Red

Temperature

-40 - 200 °C

Hardness

50 °Shore A

SIL

Alcohol

++

Concentrated acids

-

Ethanol

n/a

Hydrolysis

+

Methanol

n/a

Oil

-

Oxidation

+++

Petrol

-

Wear resistance

++

Weather and ozone

+++

Dimensional drawings

This activity requires login
Please login or register to receive the full benefits of piab.com.
Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
Resources

CAD

Suction cup B10-2 Silicone 1.5 Bellows, M5 male

Data sheet

Suction cup B10-2 Silicone 1.5 Bellows, M5 male

Manuals

Storage guidelines for suction cups and other rubber products

Brochures

Vacuum Automation - Improve your productivity and energy efficiency

Certificates

RoHS Compliance Statement Suction cups

Certificate of conformaty - EC1935/2004.

White papers

Suction cups enable the vacuum to grip

The road to state-of-the-art car production starts in the press shop

Getting a grip on bags

Filling without spilling
FAQ

How do I know which lifting forces I need?

It depends on the weight of the product that should be lifted and how many suction cups that can be used for the object. Calculate the weight to be lifted per suction cup and then take the weight multiplied with the gravity force (g = 9,81) and you have the lifting force needed in Newton (N).

How do I know which suction cup to choose?

Our recommendation is to start at the application listing to find the products we recommend to different applications. If you have questions please do not hesitate to contact our partners to find the optimum solution.

How should Piab suction cups be stored?

Please see our storage guidelines:

Storage guidelines of suction cups and rubber products (pdf)

I have a variation of number of objects to be lifted - how can I make sure to not drop them or to use too much energy? How to optimize this type of system?

All suction cups not in contact with an object (open) will draw in a lot of air and demand a larger pump than actually necessary. By using different valves, such as piSAVE® sense, in the suction cups, the suction cups will be normally closed until they come in contact with the handled object. Only the cups needed in the specific lifting cycle will be open and flow air. Please see the video piSAVE® sense.

What is DURAFLEX®?

DURAFLEX® is a patented material specially developed to feature the elasticity of rubber and the wear resistance of polyurethane. The DURAFLEX® material is mark-free.
Accessories/Spare parts
Accessories
- 3150101Suction cup B10-2 Chloroprene
- 0128692Suction cup B10-2 HNBR
Spare parts
- 3107030Fitting M5 male, 10–15
- 3150101SSuction cup B10-2 Silicone
