General
Suction cup shape
Bellows
Application
DrySheetMetal, OilySheetMetal
Characteristics
OilySheetMetal, DrySheetMetal
Material
Polyurethane (PU)

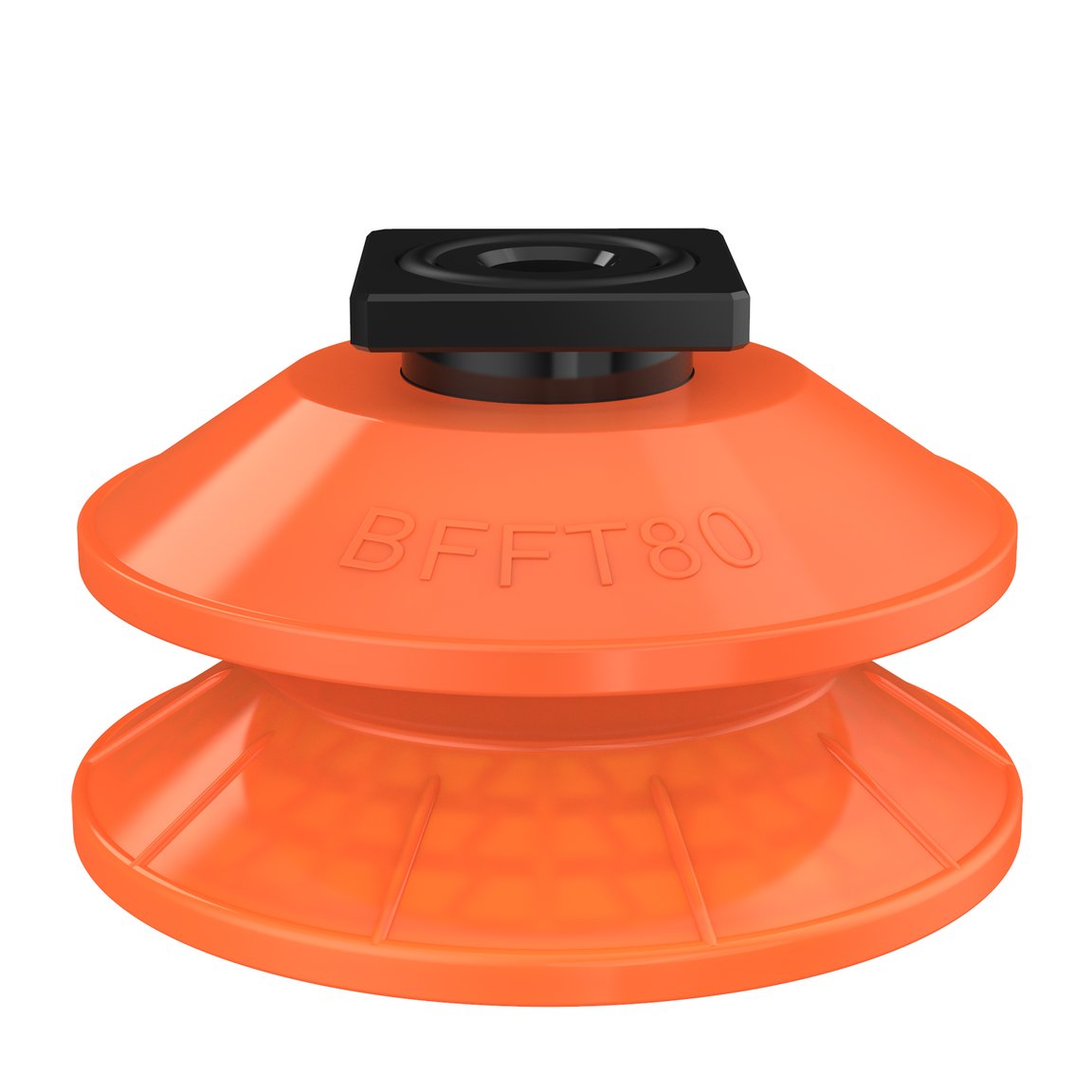

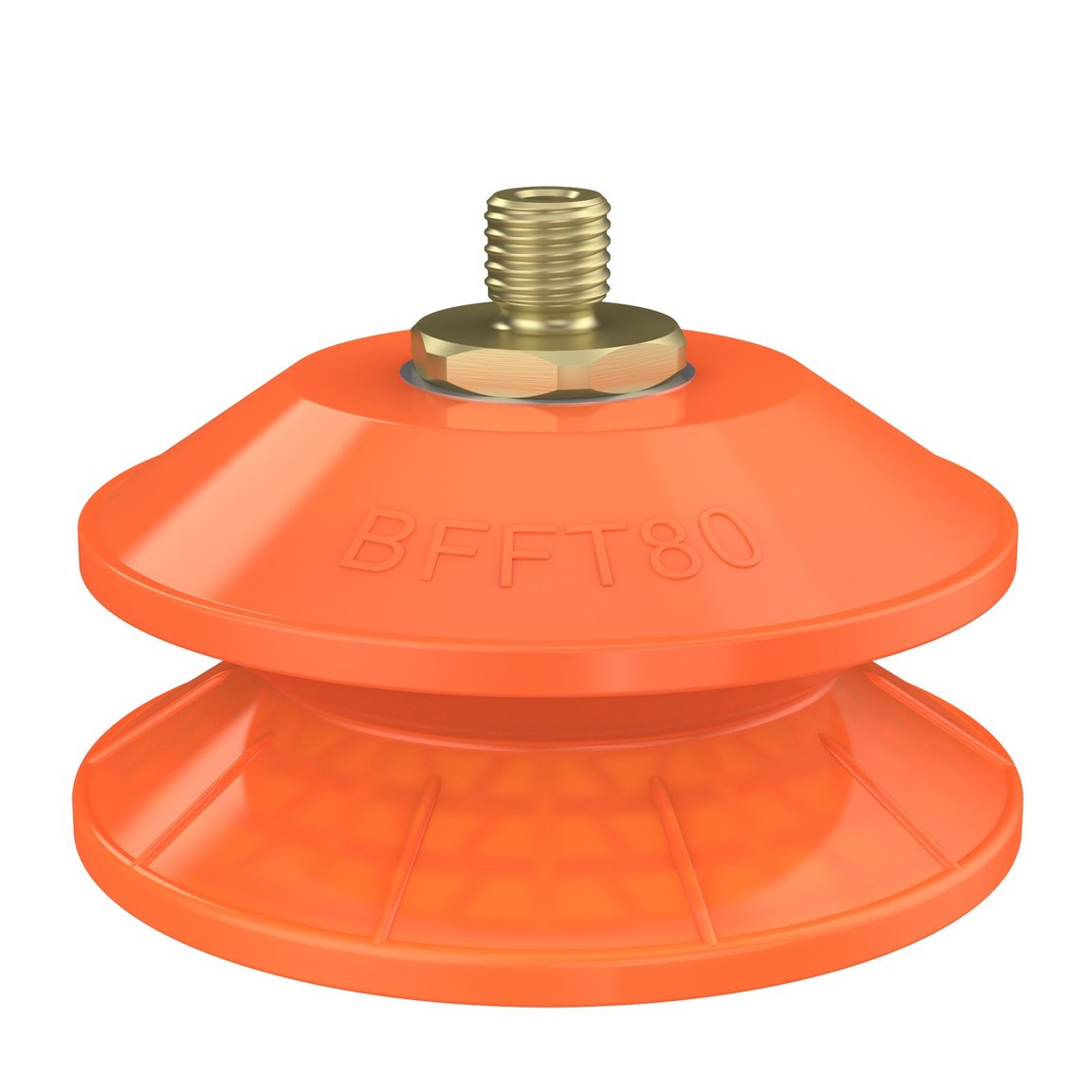

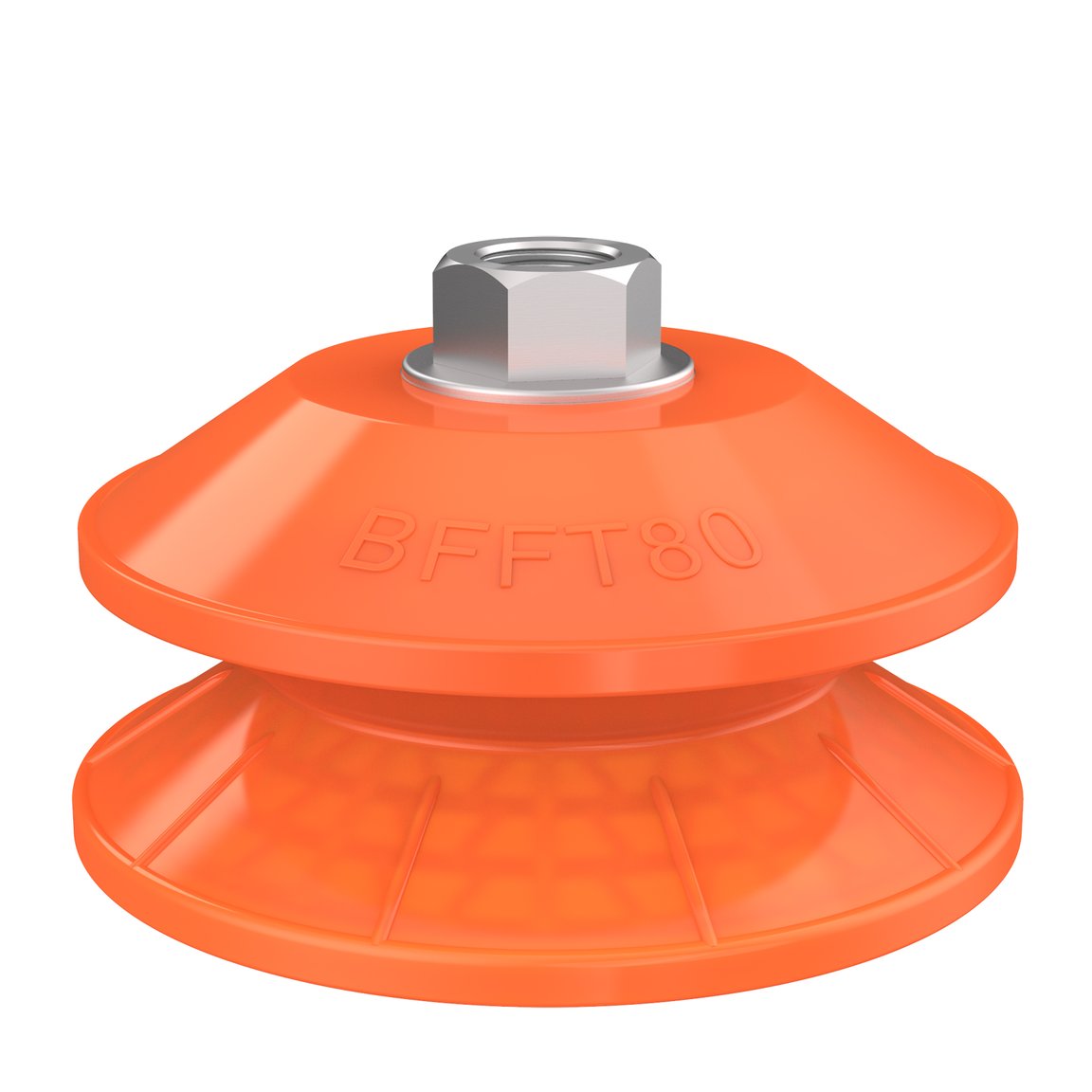

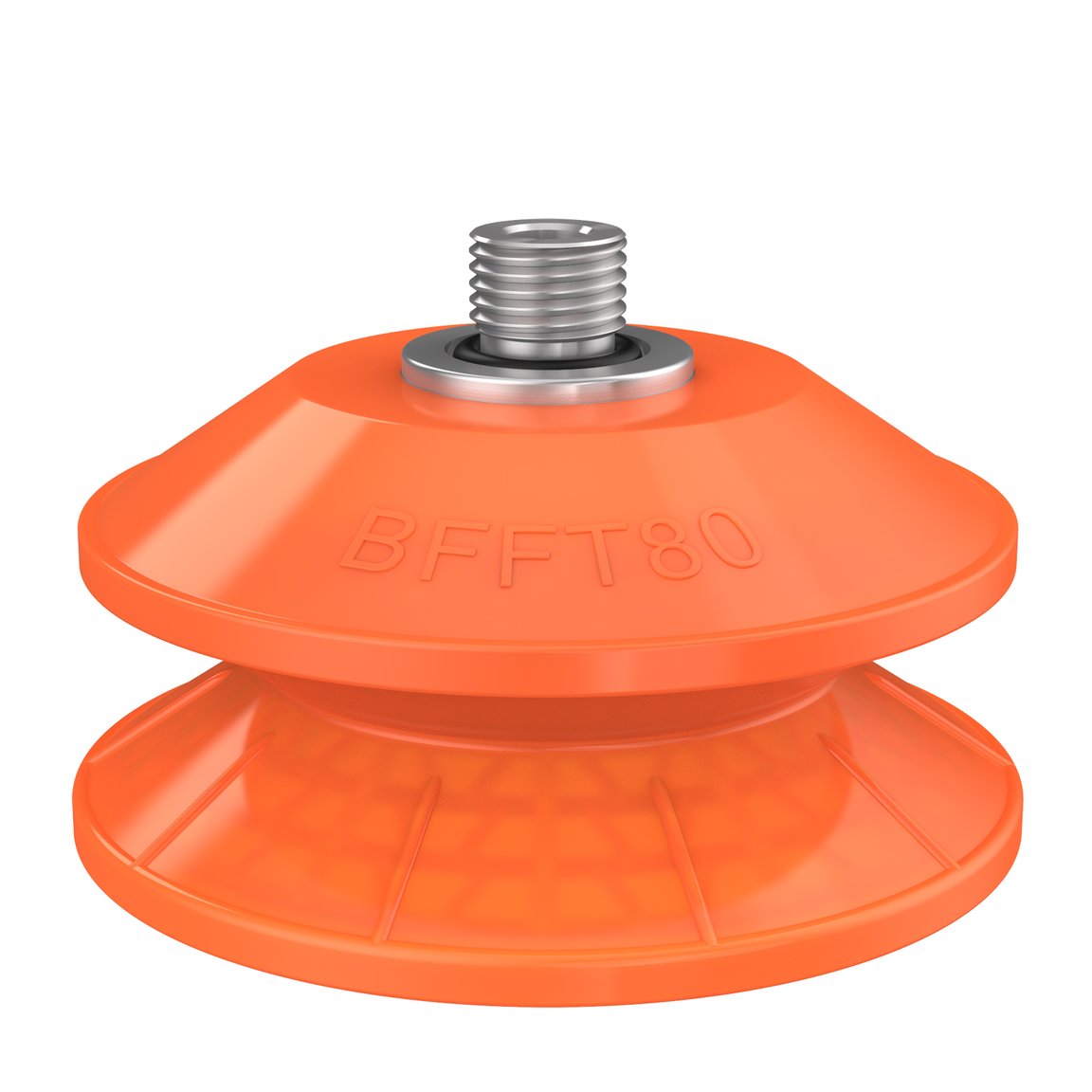

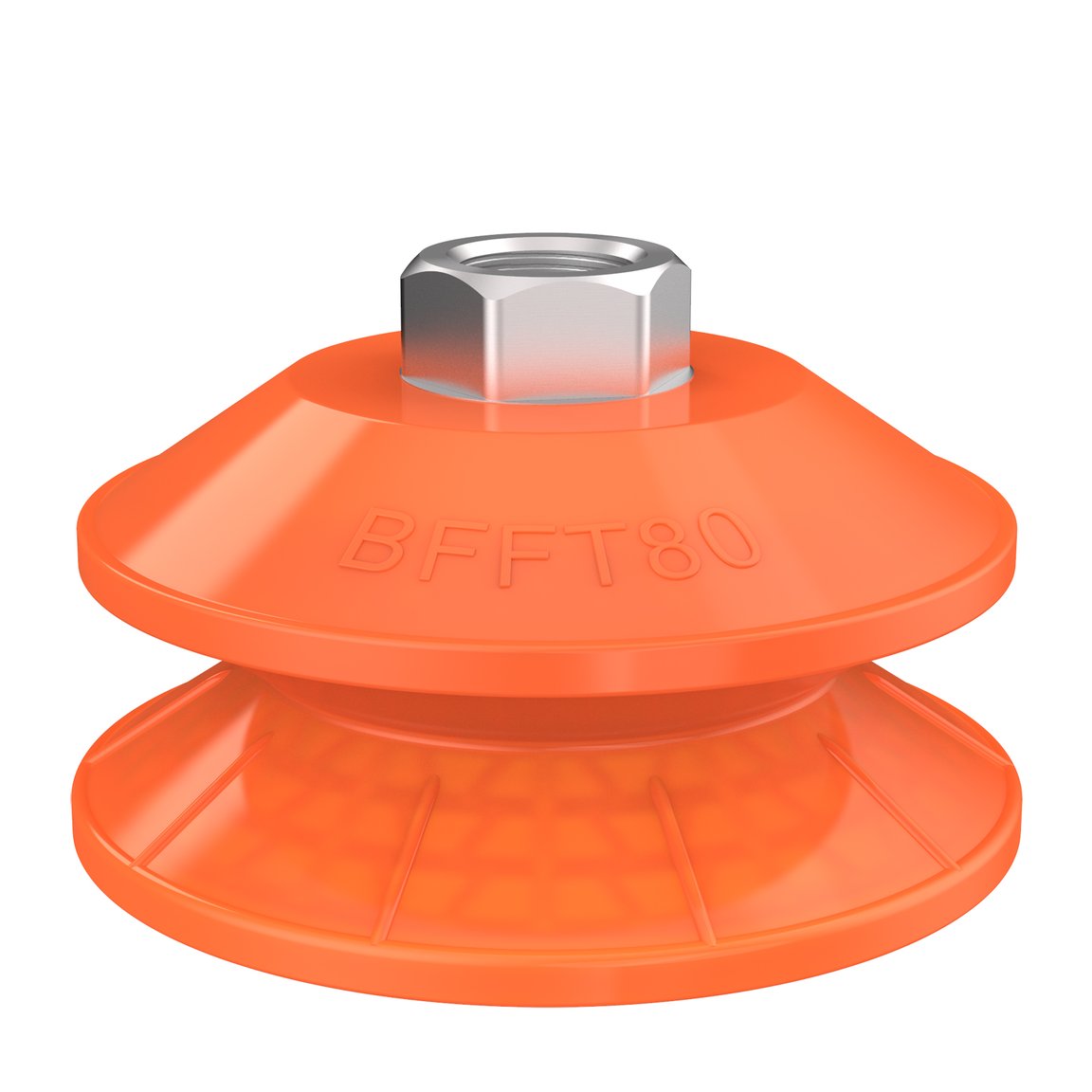

Suction cup model
BFFT80P-2 Dry metal sheet
Specification
Dry metal sheet
Movement, vertical max.
21 mm
Curve radius, min.
110 mm
Suction cup model
BFFT80P-2 Oily metal sheet
Specification
Oily metal sheet
Fitting option
Filter mesh
Height 2 (Actuated)
17.1 mm
Outer diameter, actuated
86.4 mm
Performance - lifting forces
BFFT80P-2 Dry metal sheet
20 -kPa
40 -kPa
60 -kPa
90 -kPa
BFFT80P-2 Oily metal sheet
20 -kPa
40 -kPa
60 -kPa
90 -kPa
Material
Temperature
10 - 50 °C
10 - 50 °C
10 - 50 °C
Hardness
60 °Shore A
60 °Shore A
30 °Shore A
Wear resistance
+++
+++
+++
Weather and ozone
+++
+++
+++
Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.
Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
