Item number: 0128120
30 Variants

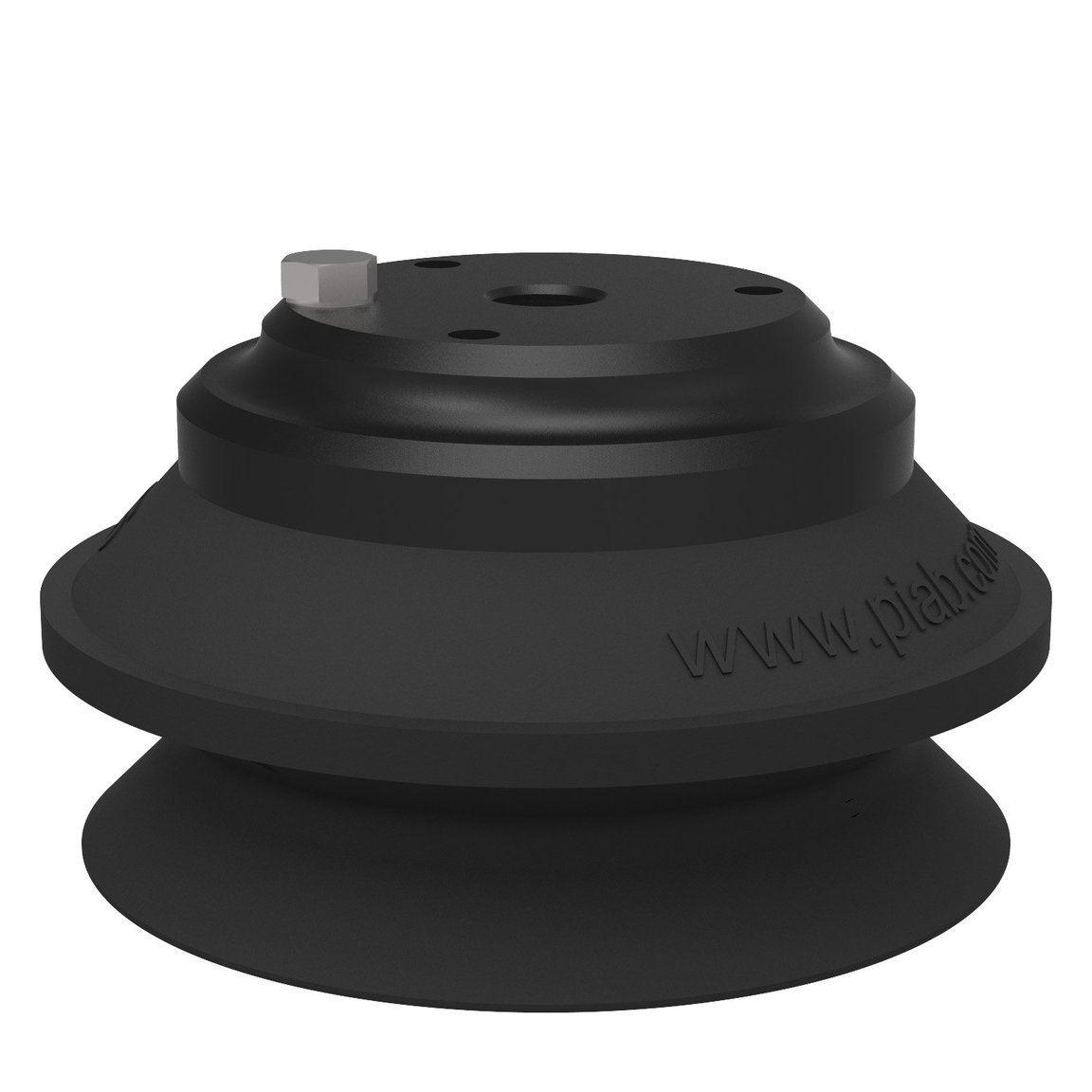

Suction cup B75 Nitrile-PVC, 1/4" NPT female Al, with mesh filter & 10-32 addl. conn.
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting moveme...
Read more
Login or create account to access all our content and features!
Variants
0101850
0101851
0101852
0101853
0101854
0101855
0101856
0101857
0108174
0108175
0108176
0108177
0128112
0128113
0128114
0128117
0128118
0128119
0128120
0128121
0128122
0128124
0128125
0128553
3150034P
3150034S
3150034T
3150107P
3150107S
3150107T
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- The lifting movement can be used to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
Logistics
Packaging
General
Material
Nitrile-PVC (NPV)
Characteristics
Dry sheet metal , Plastic injection molded parts
Suction cup model
B
Volume
110 cm³
Weight, min.
35 g
Fitting
Fitting option
None
Fitting size
1/4"
Fitting style
Female
Fitting type
NPT-thread
Dimension
Height
45.3 mm
Outer diameter, min.
78 mm
Performance - lifting forces
B75
20 -kPa
74 N
62.4 N
60 -kPa
167 N
122.4 N
90 -kPa
226 N
154.1 N
Material
Name
Nitrile-PVC (NPV)
Colour
Black
Temperature
0 - 90 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
