Item no: 0101860

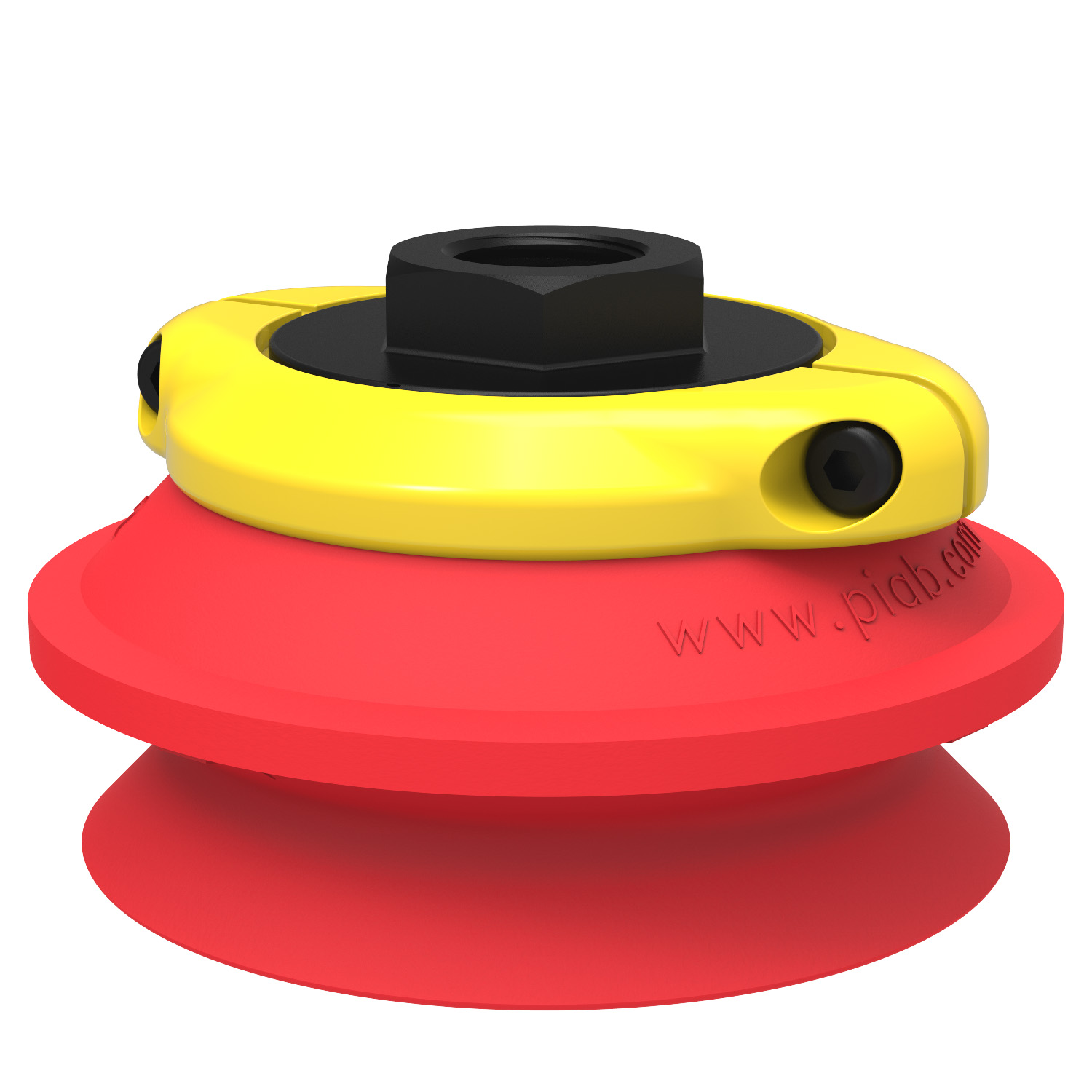

Suction cup B75-2 Silicone with filter, 3/8" NPSF female, with mesh filter
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR and nitrile-PVC.
Read more-
Description
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR and nitrile-PVC.
-
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- Lifting movement to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
-
Specifications
General
ApplicationPlasticInjectionMoldedParts, DrySheetMetalSuction cup shapeBellowsMaterialSilicone (SIL)Suction cup modelBWeight120 gVolume110 cm³Suction cup modelB75Movement, vertical max.24 mmCurve radius, min.40 mmFitting
Fitting optionFilter meshFitting size1/8"Fitting styleFemaleFitting typeNPSF-threadDimension
Height50 mmOuter diameter78 mmPerformance - lifting forces
B75
20 -kPa60 -kPa90 -kPa62.4 N122.4 N154.1 NMaterial
NameSILColourRedTemperature-40 - 200 °CHardness50 °Shore ASILAlcohol++Concentrated acids-Ethanoln/aHydrolysis+Methanoln/aOil-Oxidation+++Petrol-Wear resistance++Weather and ozone+++Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
