30 N
93 N
136 N
Select variant
-
0101114 Suction cup B50MF Thermoelastic polyurethane
-

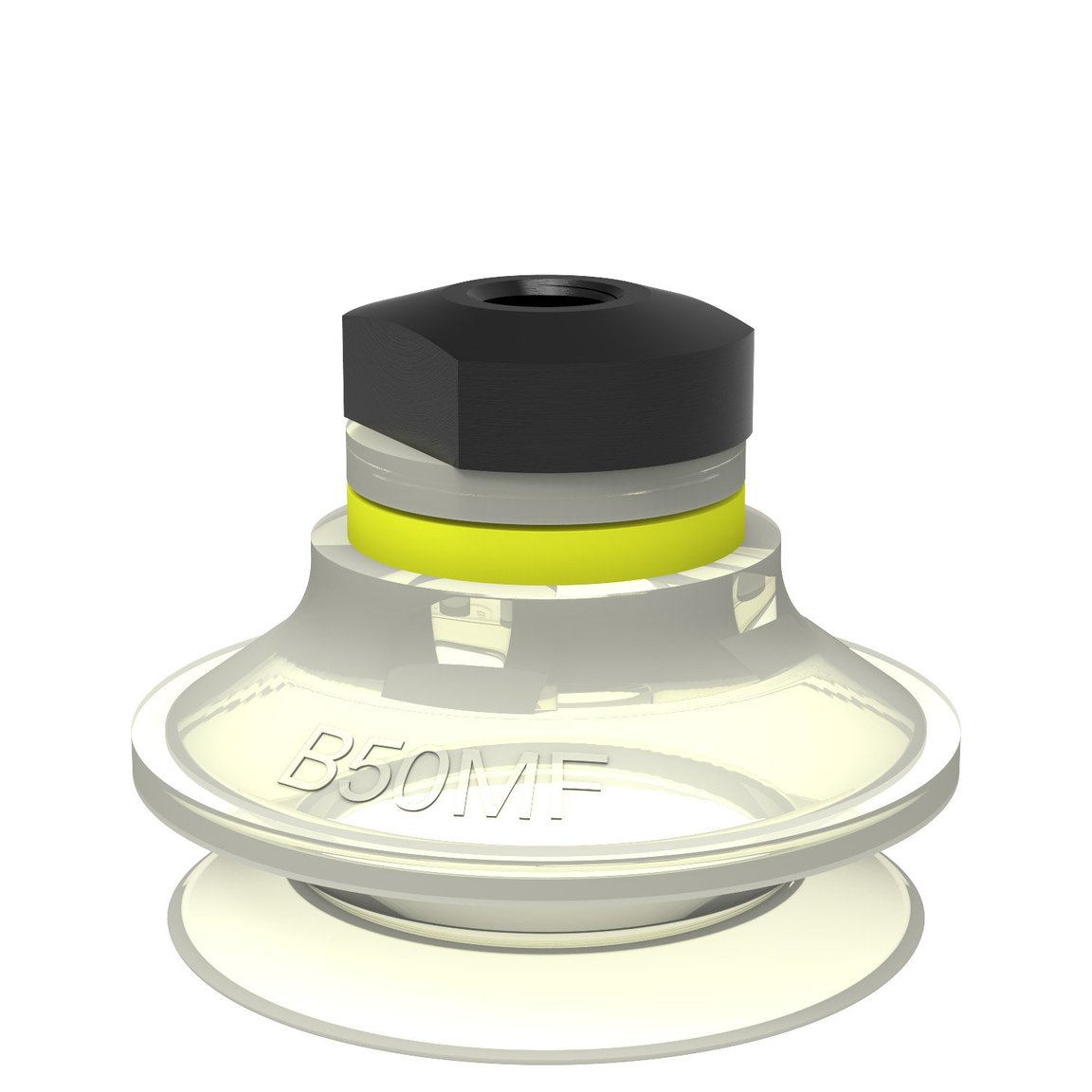

0101682Suction cup B50MF Thermoelastic polyurethane, 1/8" NPSF female
-

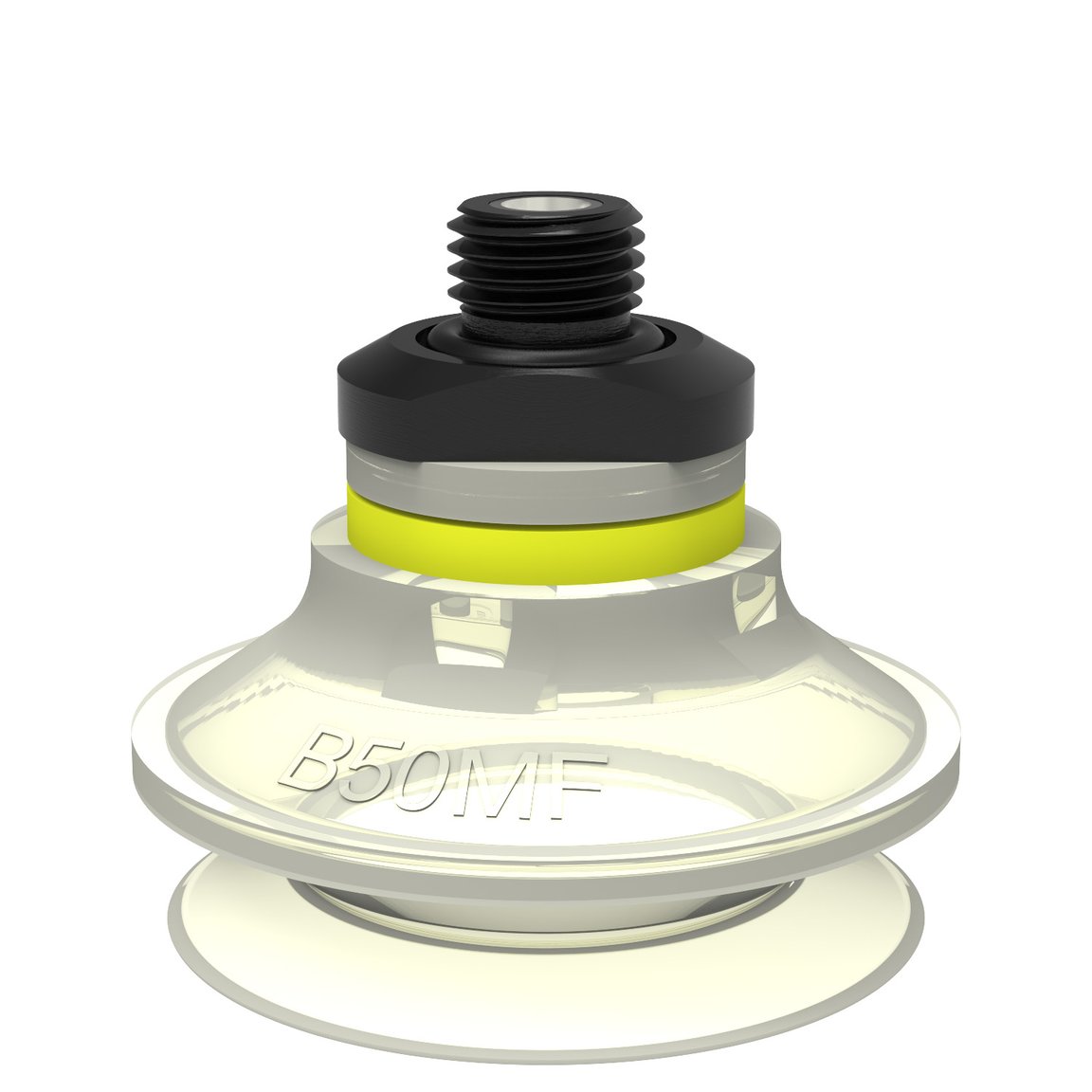

0101683Suction cup B50MF Thermoelastic polyurethane, G1/4" male, with mesh filter
-

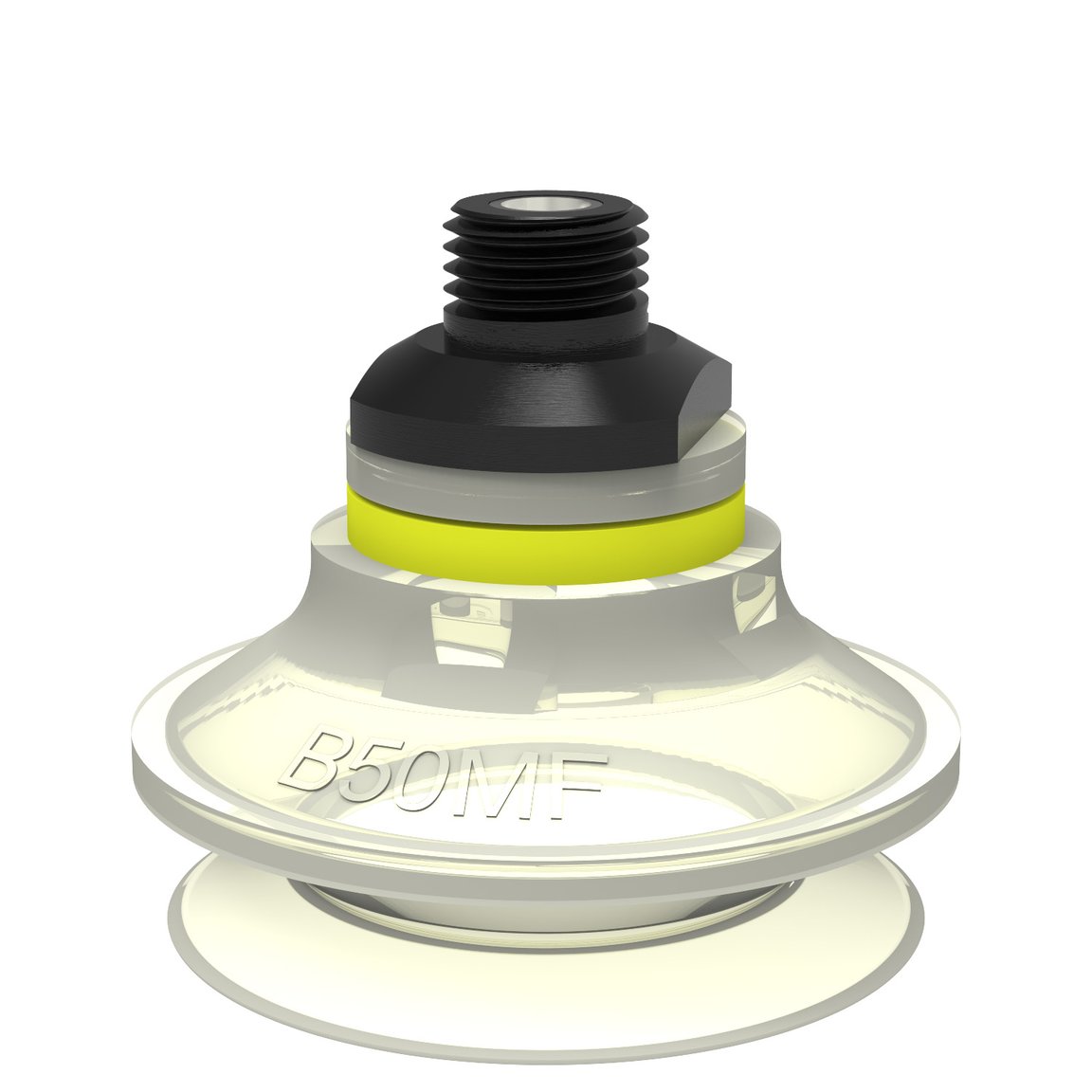

0101684Suction cup B50MF Thermoelastic polyurethane, 1/4" NPT male, with mesh filter
-

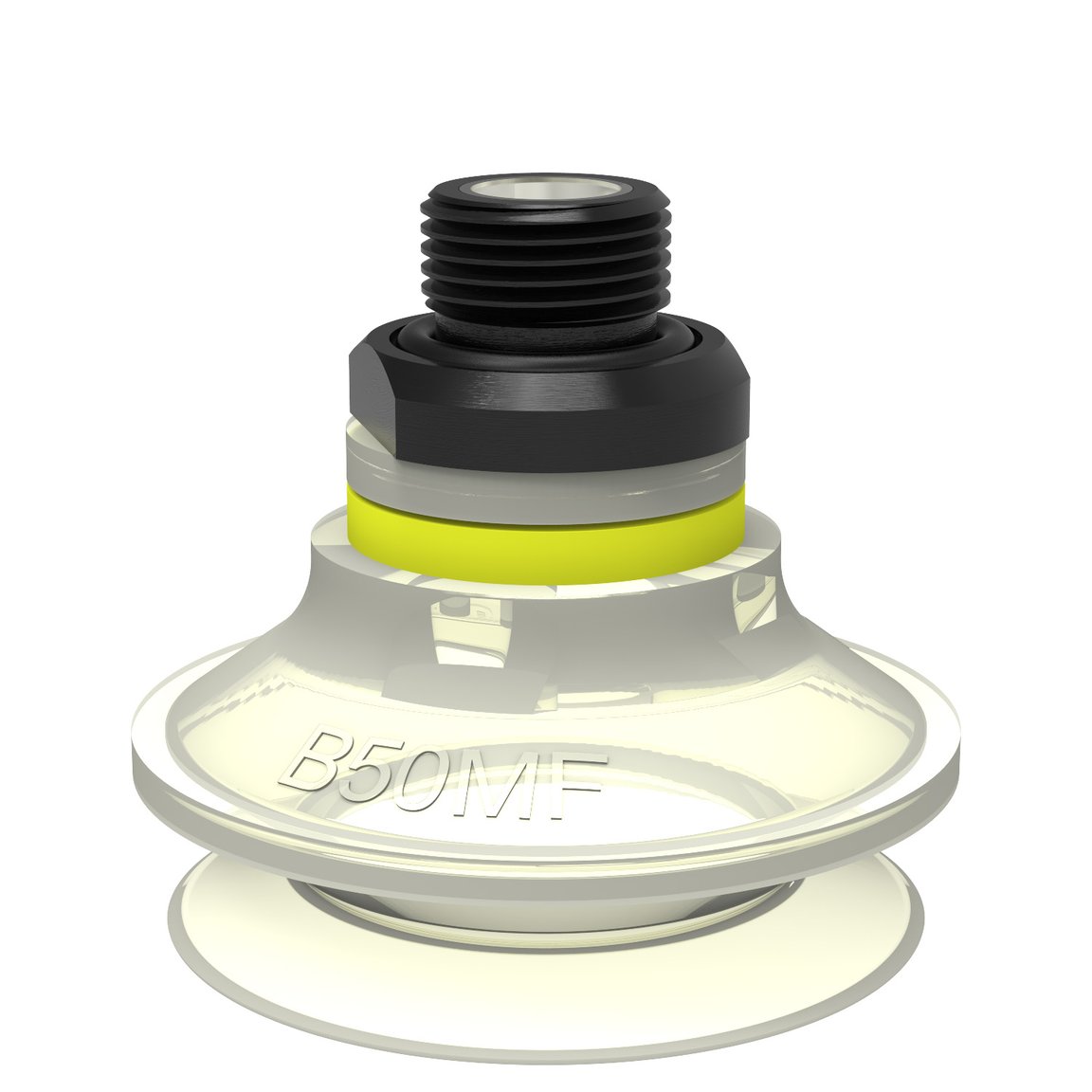

0101685Suction cup B50MF Thermoelastic polyurethane, G3/8" male, with mesh filter
-
0101686Suction cup B50MF Thermoelastic polyurethane, NPT3/8" male, with mesh filter
-
0101687Suction cup B50MF Thermoelastic polyurethane, 5x1/8" NPSF female
-

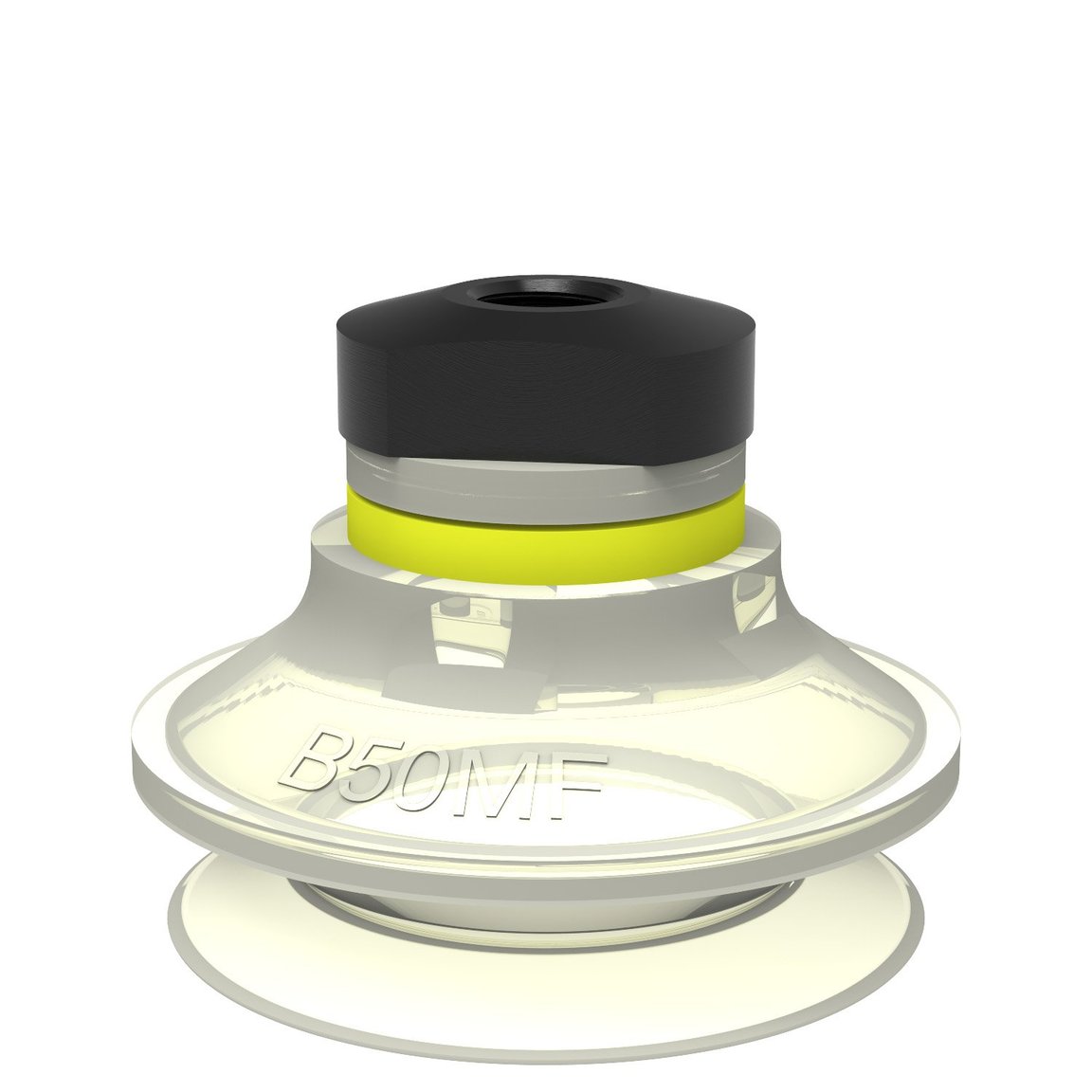

0101688Suction cup B50MF Thermoelastic polyurethane, 1/8" NPSF female, with mesh filter
-

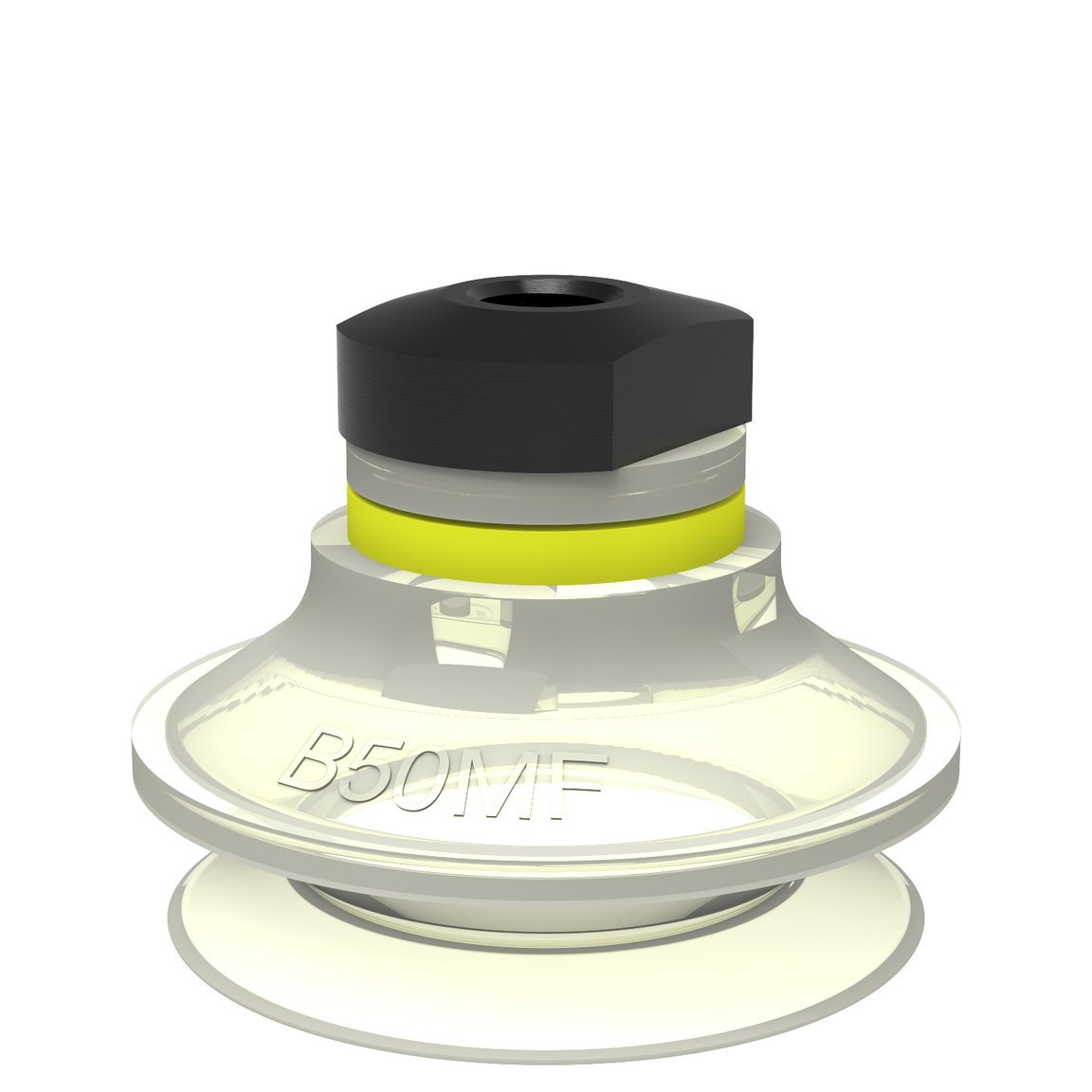

0101689Suction cup B50MF Thermoelastic polyurethane, 1/8" NPSF female, with dual flow control valve
-

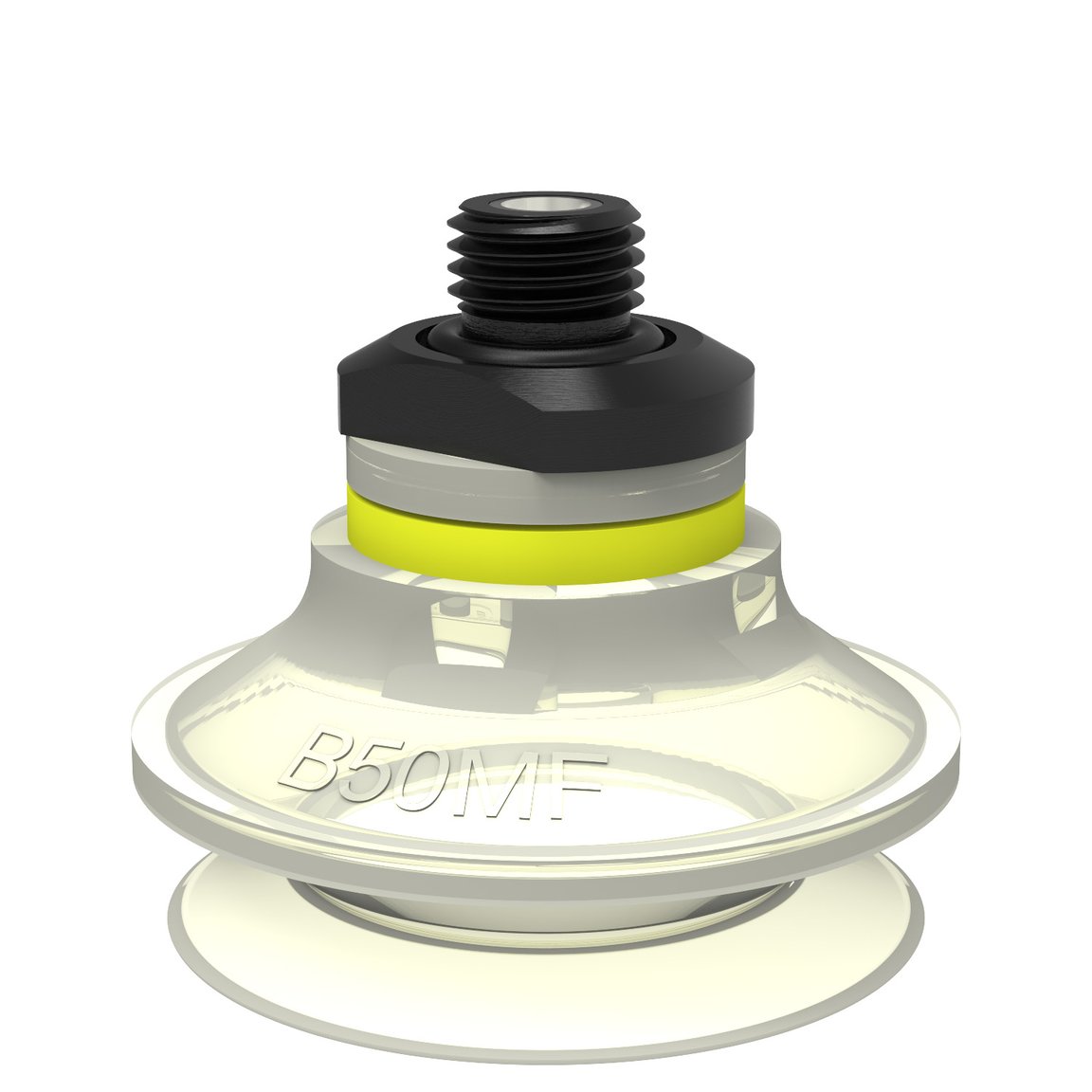

0101690Suction cup B50MF Thermoelastic polyurethane, G1/4" male, with dual flow control valve and mesh filter

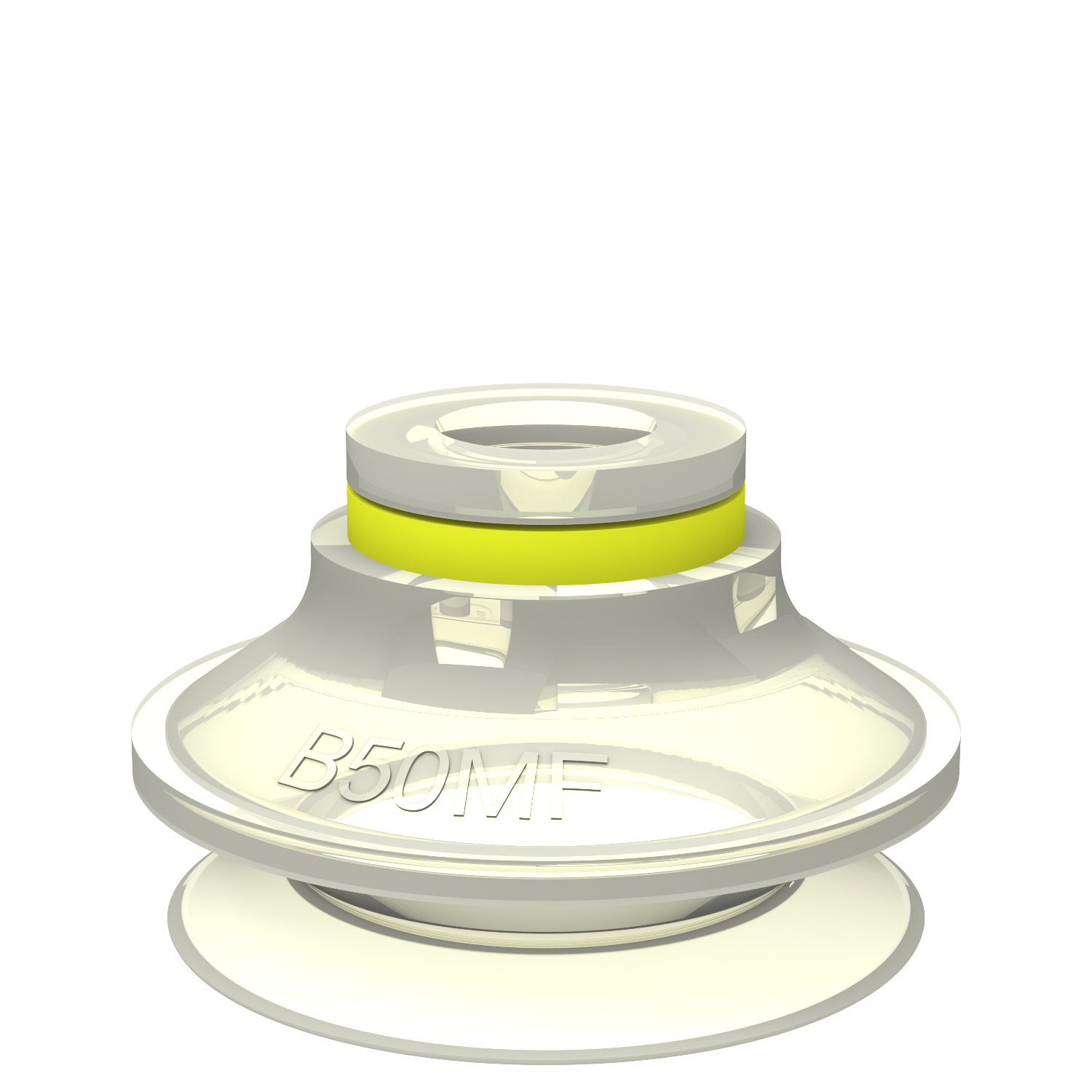

Item no: 0101114
Suction cup B50MF Thermoelastic polyurethane
The same applications as for short bellows. Also suitable for smooth objects requiring a very clean surface. Only light weight objects should be handled when the lifting force is parallel to the surface.
Read more-
Description
The same applications as for short bellows. Also suitable for smooth objects requiring a very clean surface. Only light weight objects should be handled when the lifting force is parallel to the surface.
-
Features
- Suction cup of TPU, a mark free material that leaves no trace on the object being handled.
- Suitable for level adjustment.
- Lifting movement to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface.
-
Specifications
General
Item number, alternativeB50MF.40ApplicationMark FreeSuction cup shapeBellowsMaterialThermoplastic Polyurethane (TPE-U)Suction cup modelB-MFWeight19 gVolume32 cm³Suction cup modelB50MFMovement, vertical max.14.1 mmCurve radius, min.26 mmFitting
Fitting optionNoneFitting sizeNoneFitting styleNoneFitting typeNoneDimension
Height35 mmOuter diameter57 mmPerformance - lifting forces
B50MF
20 -kPa60 -kPa90 -kPa23 N63 N97 NMaterial
NameTPUColourWhiteTransparentTemperature-20 - 80 °CHardness81 °Shore ATPUAlcohol++Concentrated acids-Ethanoln/aHydrolysis-Methanoln/aOil+++Oxidation++Petrol-Wear resistance+++Weather and ozone+++Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
