Item number: 0108264
6 Variants
Suction cup OF70x175P Polyurethane 60, 3/8" NPSF female
This program of oval suction cups has characteristics that are specially suited for handling of metal-sheet material.
Login or create account to access all our content and features!
Select variant
- 0108264

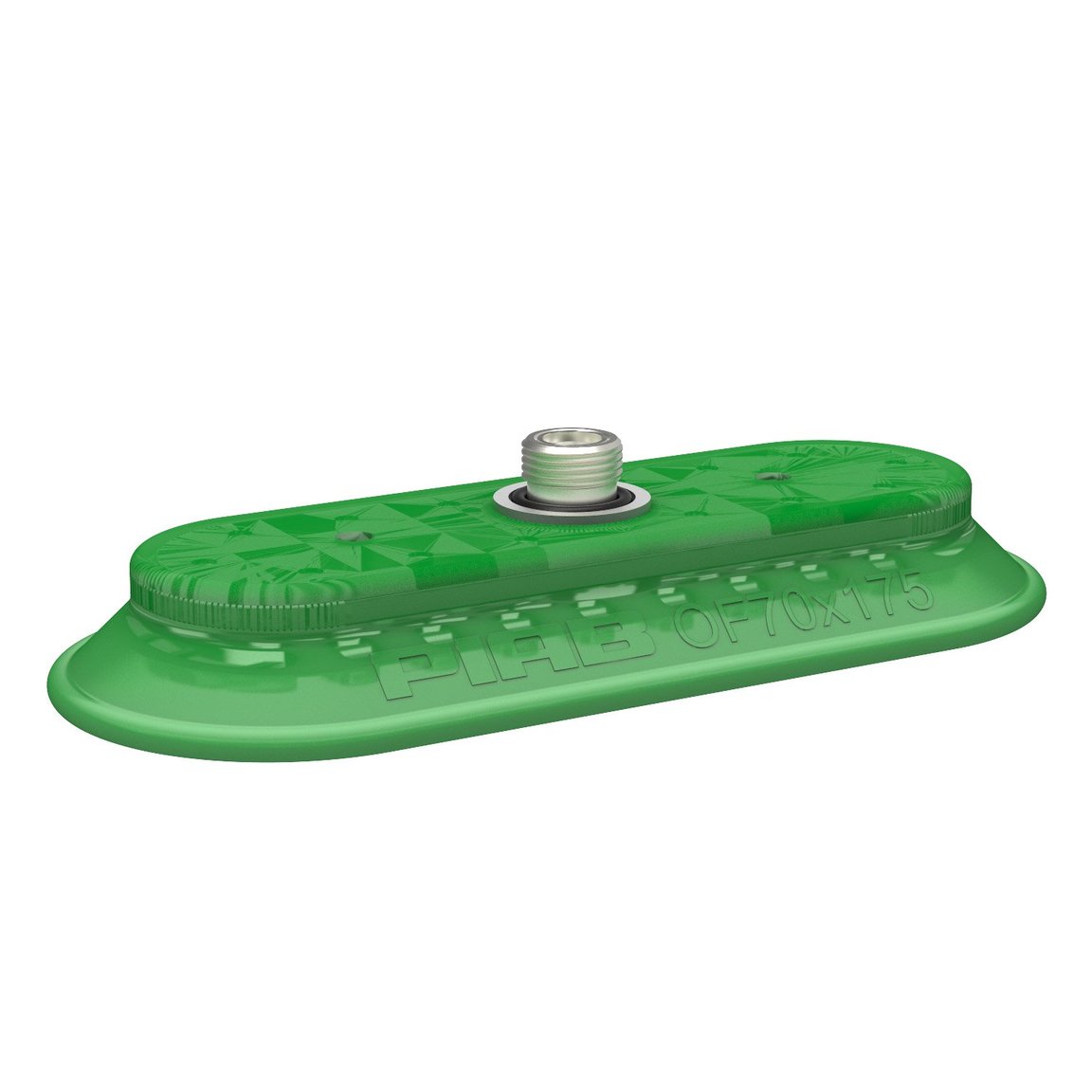

- 0108671
- 0109854

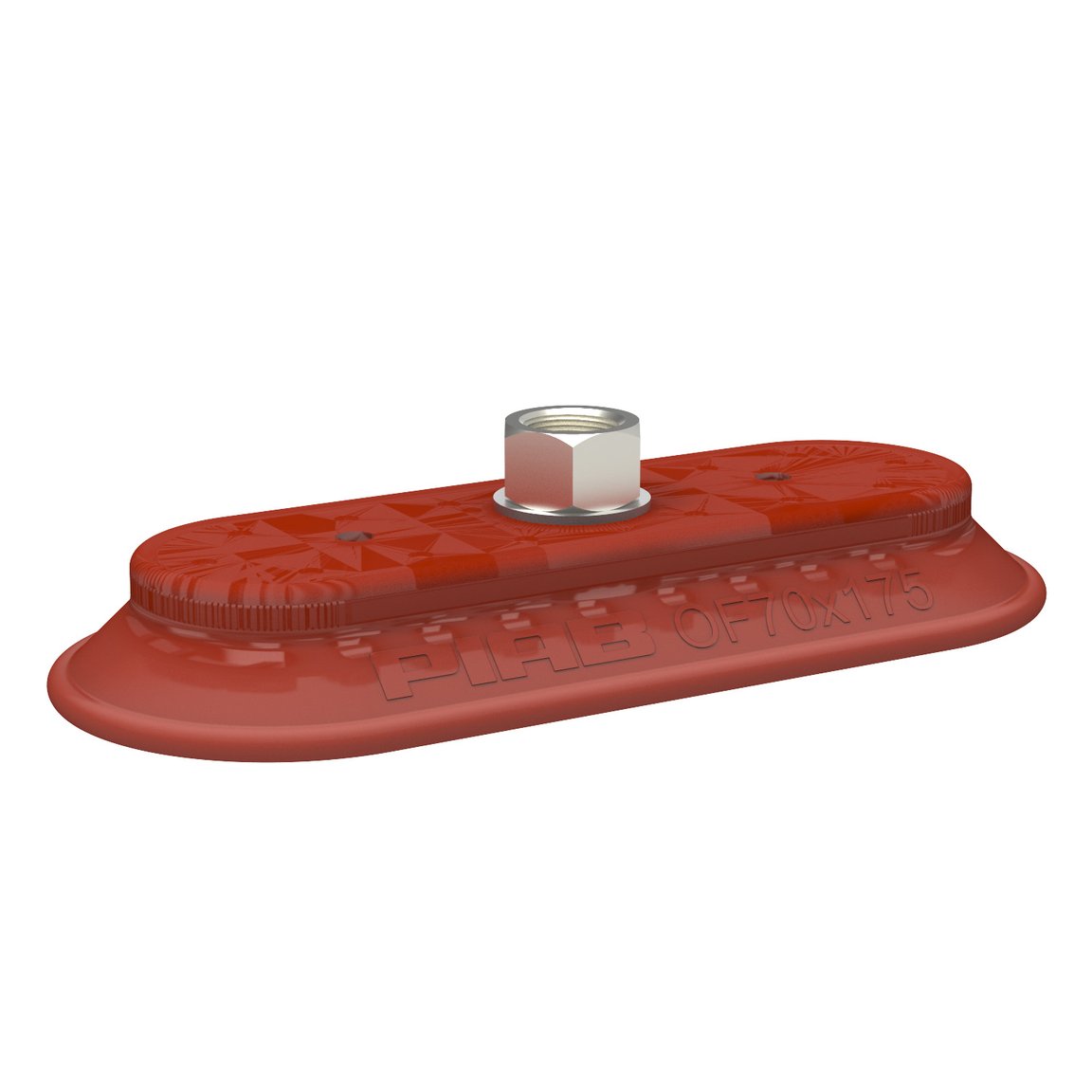

- 0109855
- 0109910

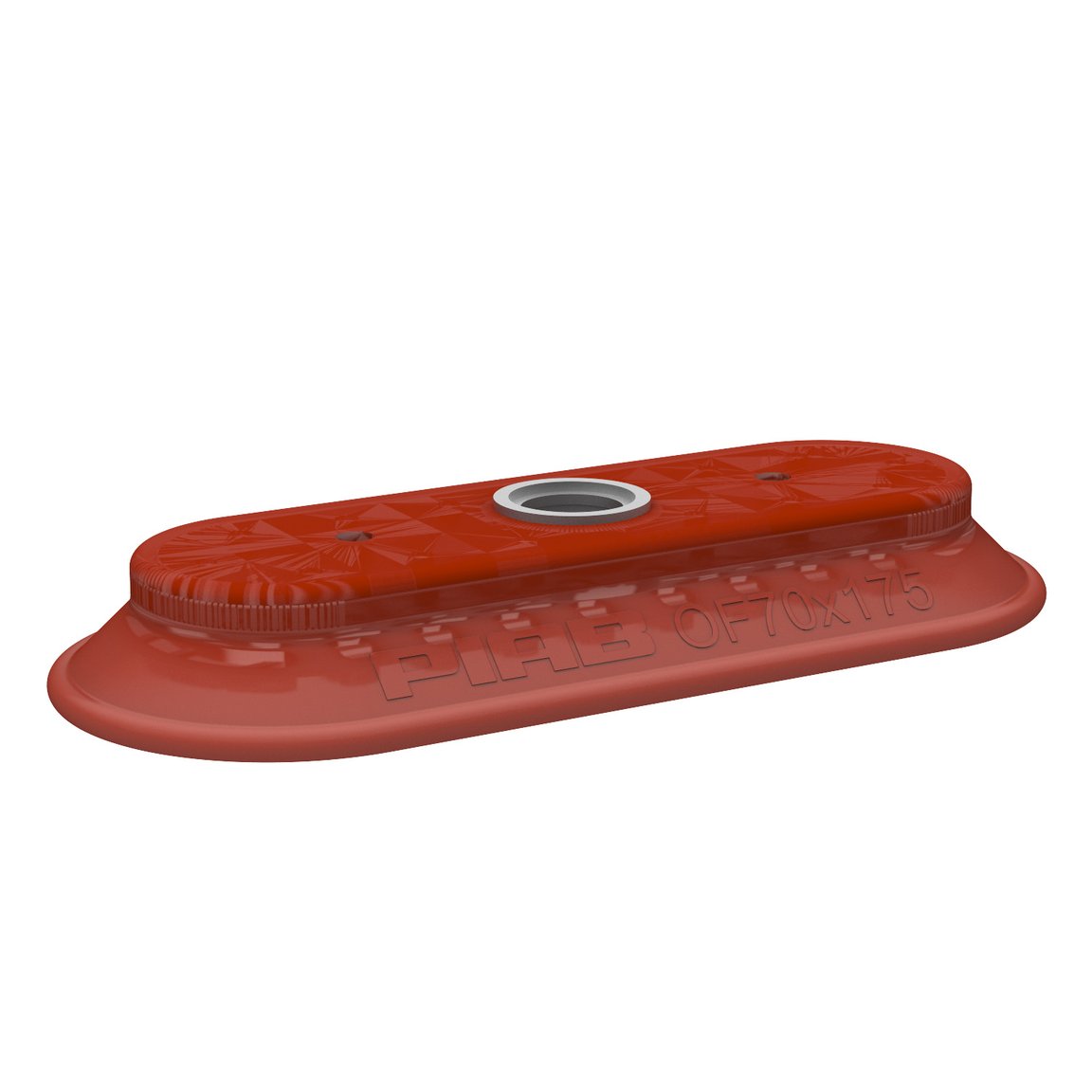

- 0109911
Features
- Suitable for flat and rough surfaces.
- Fair stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and give extra friction when the lifting force is parallel to the surface of the object.
- DURAFLEX® are suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
Automotive
- Exterior and interior trim components assembly
Packaging
- Case / carton erecting, case / carton opening closing
- Rotary carton feeding
- Slip sheet feeding
- Tray forming, tray unloading and loading
- Boxes and containers
- Robot pick and place and packing
- Card / lid feeding and sorting
General
Material
Polyurethane (PU)
Characteristics
Mark free
Suction cup model
OF
Volume
80 cm³
Weight, min.
193 g
Fitting
Fitting option
None
Fitting size
3/8"
Fitting style
Female
Fitting type
NPSF-thread
Dimension
Height
38 mm
Length
180 mm
Outer diameter, min.
180 mm
Width
75 mm
Performance - lifting forces
OF70x175P PU60
20 -kPa
180 N
200 N
60 -kPa
570 N
555 N
90 -kPa
860 N
750 N
Material
Name
Polyurethane (PU60)
Colour
GreenTransparent
Temperature
10 - 50 °C
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
-
Oil
+++
Oxidation
-
Petrol
+
Wear resistance
+++
+++
