Item number: 0129517
2 Variants

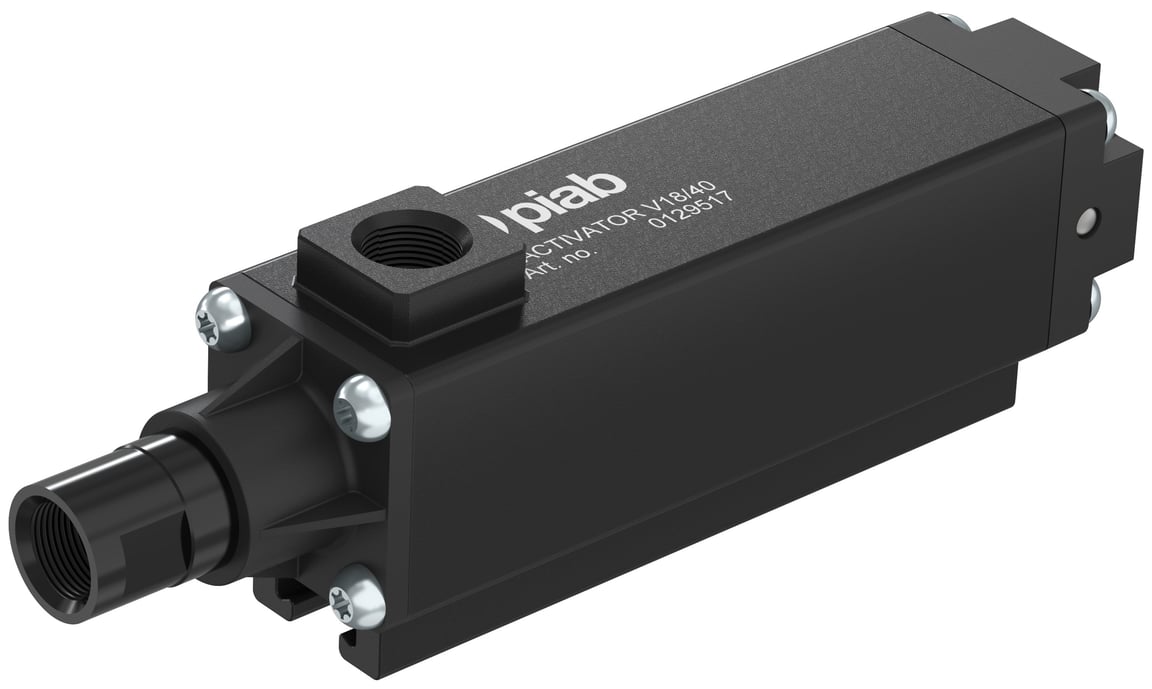

Vactivator V18/40
Adjust differences in levels, for example on lifting devices with several suction cups.
There is then less demand for exact positioning of vacuum handling devic...
Read more
Login or create account to access all our content and features!
Select variant
- 0129516
- 0129517
Features
- Actuated by vacuum only
- Automatic extension and retraction,
- Self-adjusting stroke, the piston with a suction cup returns home as soon as it seals off the object
- Suction cup ordered separately
- Simple solution for high picking speed
- Easy installation
- Designed for millions of cycles under normal industrialconditions
Automotive
- Loading and unloading metal sheets
- Plastic part removal
Plastics
- Plastic part removal
General
Material
Al , CuZn , Iron, FE , Nitrile (NBR) , POM , SS
Mounting position
Vertical
Temperature
10 - 40 °C
Weight, min.
125 g
Mechanical data
Action range/Stroke
40 mm
Bore through diameter
18 mm
Load, vertical, max.
4.9 N
Pneumatic data
Flow (Min. vacuum flow)
0.5 Nl/s
Performance
Vacuum
30 - 100 -kPa
