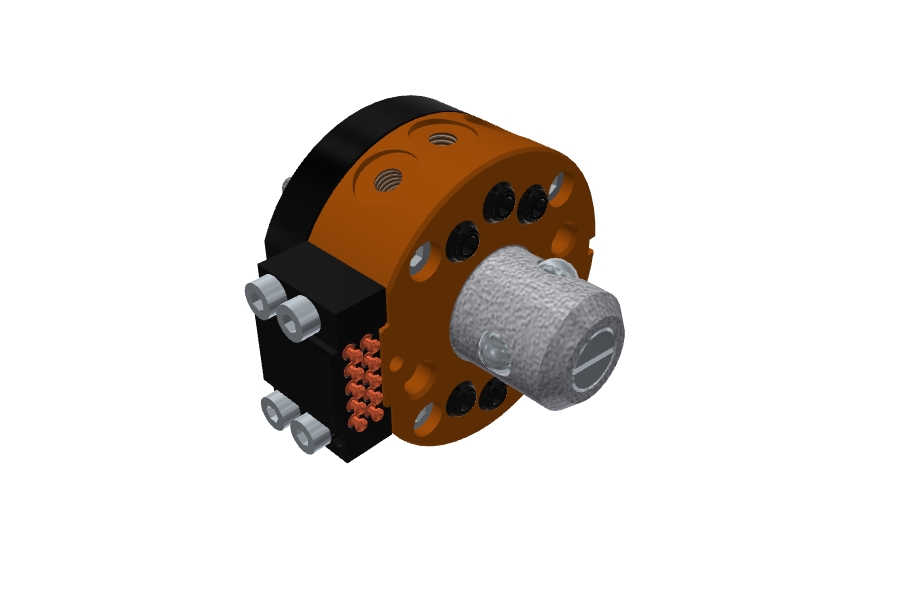

QCC 0 Hands Free Quick Change Chuck

Select variant

QCC 0 Hands Free Quick Change Chuck

Item no: 0214574

QCC 0 Hands Free Quick Change Chuck

Used in automatic robotic tool change application. Integrated pneumatic and electrical connections. Master plate and Tool plate sold separately. Includes electrical connectors.

Read more

Check availability

Request quote

Description

Used in automatic robotic tool change application. Integrated pneumatic and electrical connections. Master plate and Tool plate sold separately. Includes electrical connectors.
Features
- Used in automatic robotic tool change application.
- Integrated pneumatic and electrical connections.
- Master plate and Tool plate sold separately.
- Includes electrical connectors.
Specifications

General

Item number, alternative

E18601212

Weight, max.

96 g

Electrical data

Cable specification

10-Pin

EOAT (End Of Arm Tooling)

Degree

45 º

Dimensions DWG

Diameter

40 mm

Diameter

3.5 mm

Diameter

49 mm

Thread

M5 (6) in

Width

5 mm

Width

18 mm

Width

19 mm

Width

33 mm

Width

49 mm
