Item number: 0101677
21 Variants

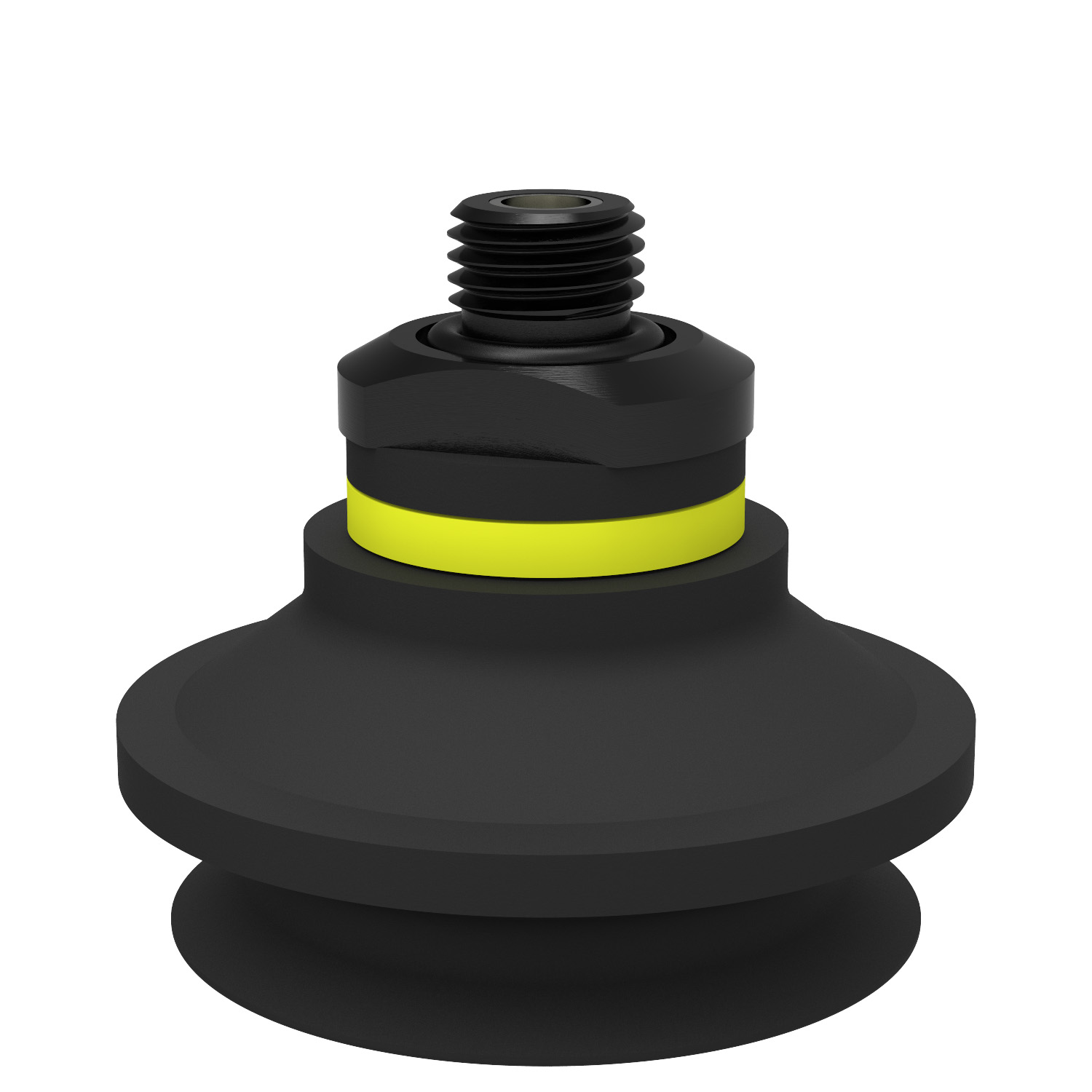

Suction cup B50-2 Nitrile-PVC with filter, G1/4" male, with dual flow control valve and mesh filter
Login or create account to access all our content and features!
Variants
- 0101109
- 0101110
- 0101656
- 0101657
- 0101658
- 0101659
- 0101660
- 0101661
- 0101662
- 0101663
- 0101669
- 0101670
- 0101671
- 0101672
- 0101673
- 0101674
- 0101675
- 0101676
- 0101677
- 0110347
- 0110957
물류 및 창고
제약
General
Material
Nitrile-PVC (NPV)
Characteristics
유분이 없는 철판 , 플라스틱 사출 성형품
Leakage flow, max. | Nl/s
0.34 scfm
Suction cup model
B
Valve restriction | mm
0.039 in
Volume | cm³
1.95 in³
Weight, min. | g
0.71 oz
Fitting
Fitting option
양방향 조절 밸브 , 디스크형 필터 , 메쉬 필터
Fitting size
1/4"
Fitting style
숫나사
Fitting type
G-나사
Dimension
Height | mm
1.98 in
Outer diameter, actuated | mm
2.32 in
Outer diameter, min. | mm
2.067 in
