Item number: 0110730
9 Variants

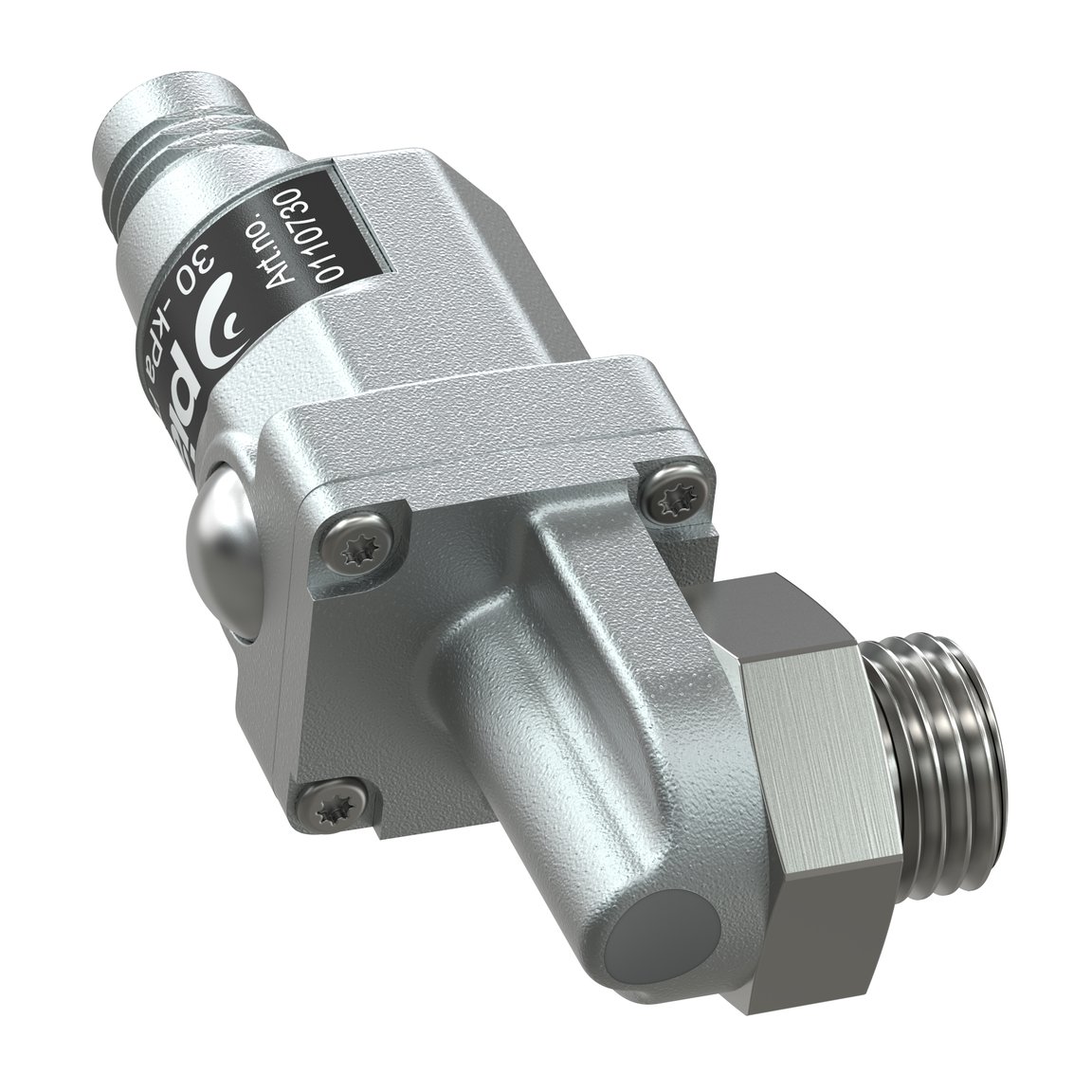

Vacuum Switch VS4118 30 -kPa, M8 PNP/NPN NO/NC
Our line includes inductive universal, electro-mechanical and pneumatic vacuum switches that are pre-set or adjustable.
Login or create account to access all our content and features!
Variants
0110630
0110631
0110730
0110731
0110732
0124450
0213570
0213664
0110632
Features
- Pre-set vacuum switch with digital output.
- Durable and compact design with G1/8" 90° angle swivel connection for easy installation.
- VS4118 hardwired enables PNP NO/NC or NPN NO/NC functionality.
- VS4128 suitable for plug in I/Os. Available in PNP NO or NPN NO models.
- Possible to connect several units serially with T-connectors to provide a common output (VS4128 PNP).
General
Material
Al , CuZn , PA , SS
Temperature
-25 - 85 °C
Weight, min.
23 g
Electrical data
Current, inductive, max.
0.1 A
Current, resistive, max.
0.4 A
Display
LED indicator
Safety classification
IP65
Voltage
24 (12-30) VDC
Voltage drop, max (100mA/24V inductive load)
0.055 VDC
Dimension
Height
17 mm
Length
16 mm
Width
47.6 mm
Performance
Feed pressure, max. (@ vacuum connection)
0.6 MPa
Signal function
Hysteresis
8 kPa
Signal range
26 - 34 -kPa
Pneumatic data
Valve function
NO , NC
