Item number: 0111603
16 Variants

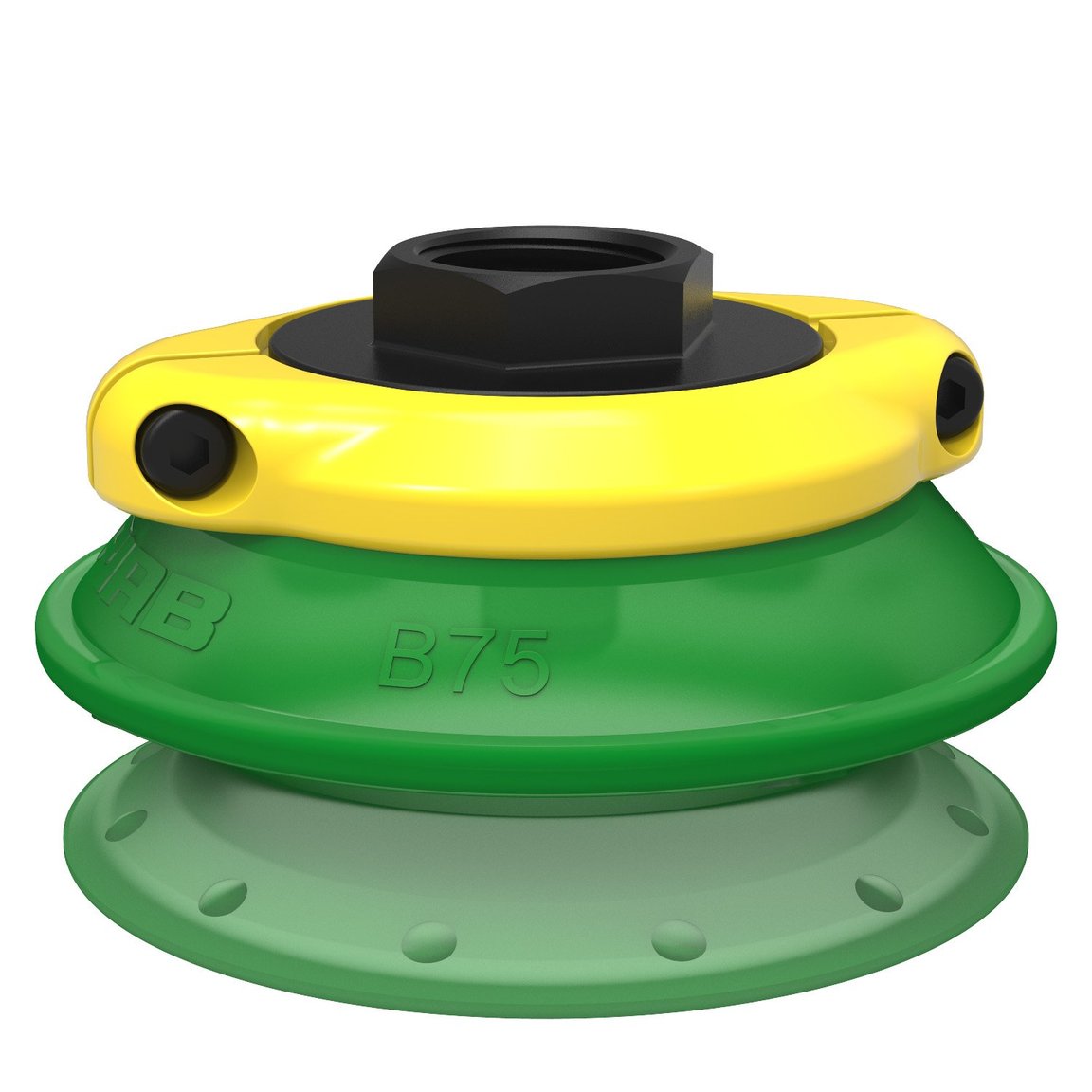

Suction cup B75P Polyurethane 60, G1/2" female, with mesh filter
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting moveme...
Read more
Login or create account to access all our content and features!
Variants
0104723
0106345
0106346
0106347
0106348
0106832
0106833
0107318
0107319
0108790
0108791
0111594
0111600
0111601
0111602
0111603
Features
- Suitable for level adjustment and for uneven and porous surfaces such as cardboard, etc.
- In the two-coloured suction cup the bellows and the sealing lip are of different hardnesses, which makes the suction cup strong and stable and, at the same time, soft and flexible.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane.
- The material of the DURAFLEX® is mark free.
Automotive
- Exterior and interior trim components assembly
Packaging
- Boxes and containers
- Card / lid feeding and sorting
- Case / carton erecting, case / carton opening closing
- Robot pick and place and packing
- Rotary carton feeding
- Slip sheet feeding
- Tray forming, tray unloading and loading
General
Material
Polyurethane (PU)
Characteristics
Dry sheet metal , Plastic injection molded parts , Mark free
Suction cup model
B-P
Volume
110 cm³
Weight, min.
126 g
Fitting
Fitting option
Filter mesh
Fitting size
1/2"
Fitting style
Female
Fitting type
G-thread
Dimension
Height
50.3 mm
Outer diameter, actuated
86.3 mm
Outer diameter, min.
76.6 mm
Performance - lifting forces
B75P PU60
20 -kPa
83 N
121 N
60 -kPa
196 N
229 N
90 -kPa
255 N
298 N
Material
Name
Polyurethane (PU60)
Colour
GreenTransparent
Temperature
10 - 50 °C
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
