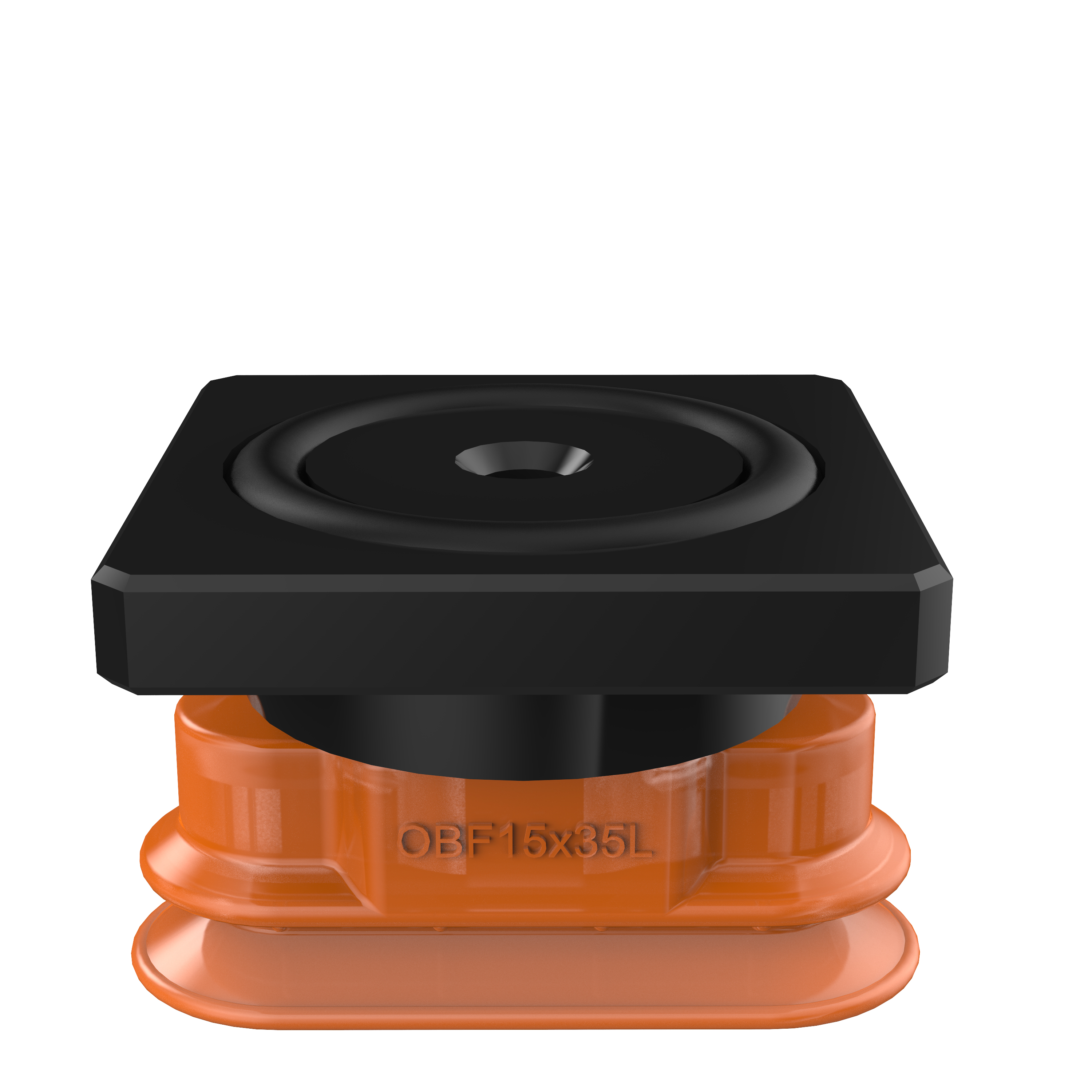

Suction cup OBF15x35P L Polyurethane 60, T-slot

Select variant

•

  0207594

  Suction cup OBF15x35P L Polyurethane 60, G1/4^" female
  Compare
•

  0207595

  Suction cup OBF15x35P L Polyurethane 60, G1/4^" male
  Compare
•

  0207593

  Suction cup OBF15x35P L Polyurethane 60, G3/8^" female
  Compare
•

  0207598

  Suction cup OBF15x35P L Polyurethane 60, G3/8^" female plastic
  Compare
•

  0207597

  Suction cup OBF15x35P L Polyurethane 60, G3/8^" male
  Compare
•

  0209501

  Suction cup OBF15x35P L Polyurethane 60, G3/8^" fem 17mm
  Compare
•

  0207596

  Suction cup OBF15x35P L Polyurethane 60, M10x1.5 male
  Compare
•

  0207589

  Suction cup OBF15x35P L Polyurethane 60, NPT3/8^" female
  Compare
•

  0207592

  Suction cup OBF15x35P L Polyurethane 60, T-slot
  Compare

Features

• Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
• Normal wear on friction cup will not affect the long term shear force performance.
• Best choice if > 0,1g/m2 press oil is used on the sheet.
• Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
• The small "OBF" cups are suitable for narrow objects with curved or flat surfaces and small gripping areas, such as those encountered with body parts in the automotive industry.
• Can handle objects with minor height differences.
• Available in a high (H) version, suitable for picking on narrow submerged surfaces, where a wider fitting otherwise will interfere with the object. Examples are frames and structural parts for the car.
• DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
