Item number: 0121067
18 Variants

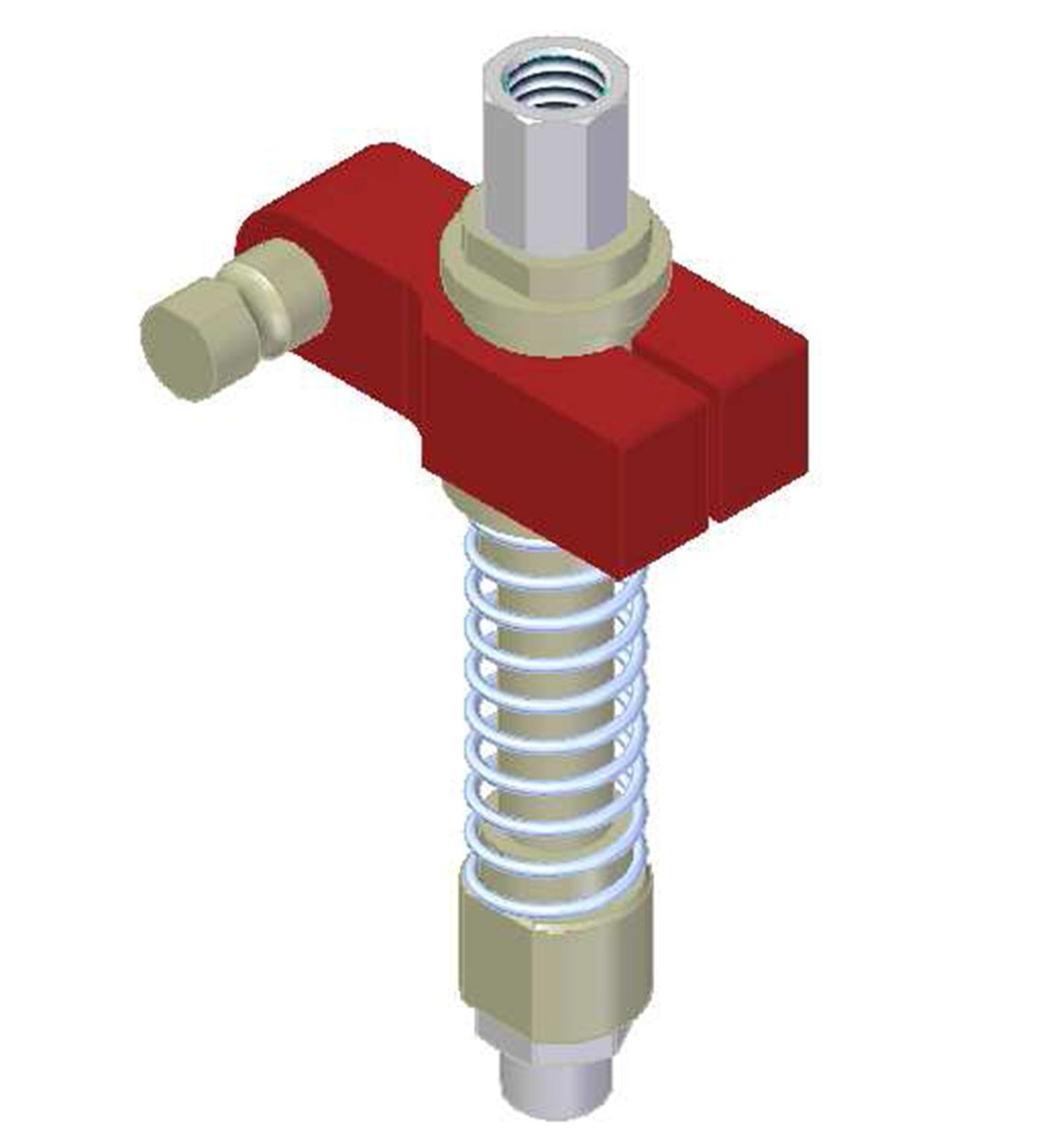

Centralized vacuum connection with level compensator, NPT threads, Lock pin 16, Left hand connection
Login or create account to access all our content and features!
Variants
0119498
0110434
0110433
0121066
0121068
0120716
0109230
0121001
0121002
0121212
0121208
0121210
0121067
0121069
0121070
0121213
0121209
0121211
Features
- Connects centralised vacuum to suction cup.
- Available in lock pin 16, 19 or ball joint mountings, industry standard.
- Available with level compensator to compensate for differences in level of object.
General
Material
Al , CuZn , Nitrile (NBR) , Polyurethane (PU) , SS , Steel
Temperature
-30 - 70 °C
Weight
676 - 753 g
Mechanical data
Action range
0-360 º
Action range
50 mm
Action range/Stroke
50 mm
Load, vertical, max.
700 N
Spring force, max.
66.7 N
Pneumatic data
Life span ()
10000000 cycles
Volume, internal ()
13.8 cm³
